Colchester Triumph 2000 Gap Bed Centre Lathe

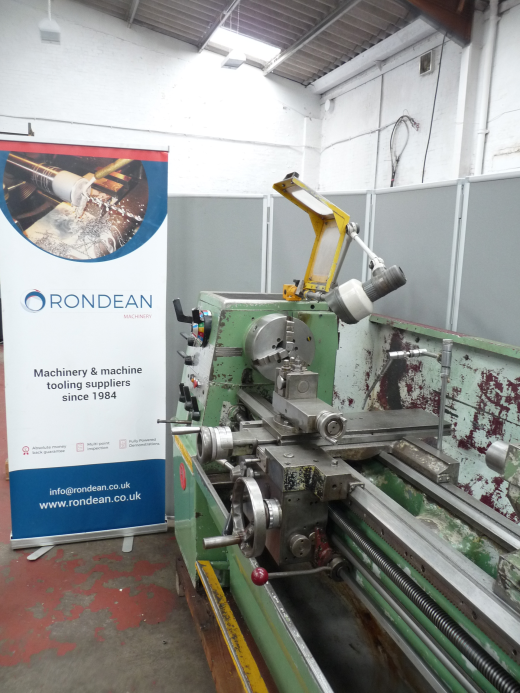

Photo 1

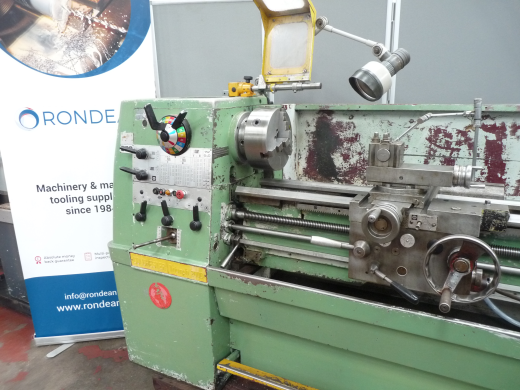

Photo 2

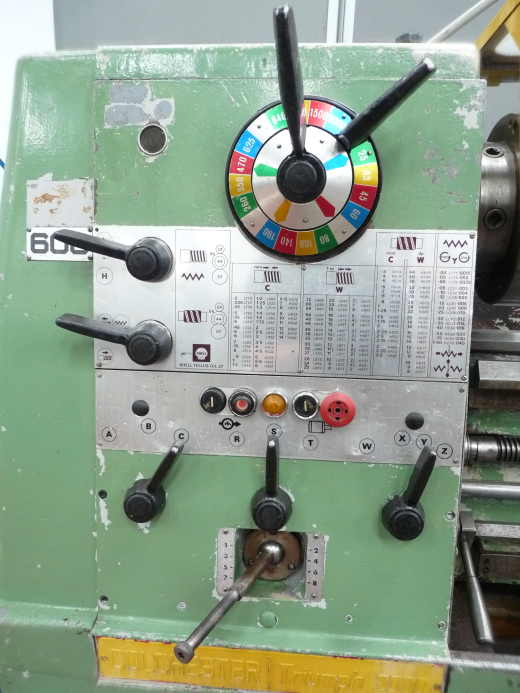

Photo 3

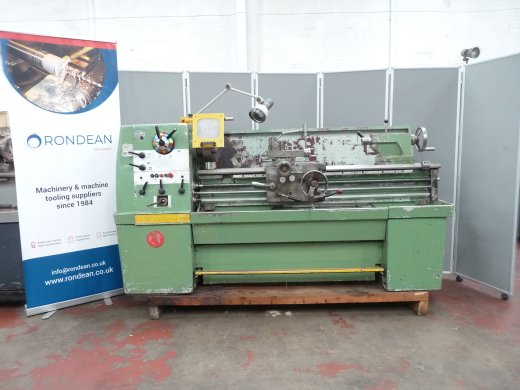

Photo 4

Colchester

Model
Triumph 2000 Gap Bed Centre lathe

Distance between centres
50” (1270mm)

Height of centres
7 ½” (190mm)

Swing over bed
15” (380mm)

Swing in Gap
23” (585mm)

Gap piece length
10.25” (260mm)

Gap in front of face plate
6” (150mm)

Swing over cross slide
9” (228mm)

Spindle Nose
D1-6” Camlock

Spindle Bore
2 3/16” (55.5mm)

Speeds
25-2000 RPM

Tailstock Spindle Taper
4 Morse

Equipment
3 Jaw Chuck
Quick Change Tool Post & 2 tool holders
Coolant
Foot Brake
Interlocking Chuck Guard

Motor Size
7.5 Horse Power 12 amps max load

Power
Three Phase Electric's

Category: Lathes - general

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 19 May 2025
