Harrison M250 30” Straight Bed Centre Lathe L31012.01

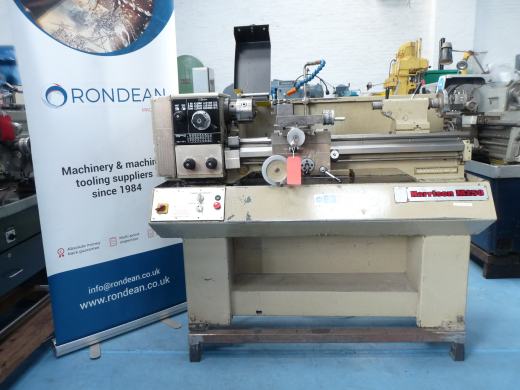

Photo 1

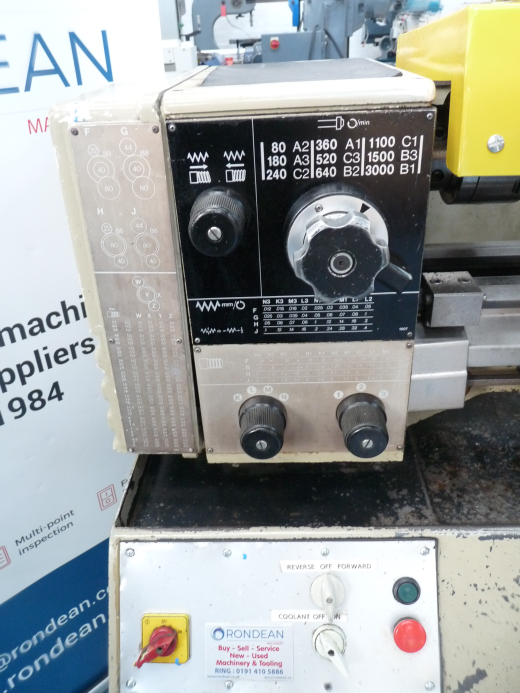

Photo 2

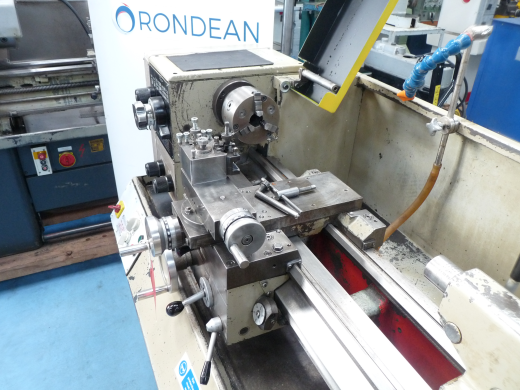

Photo 3

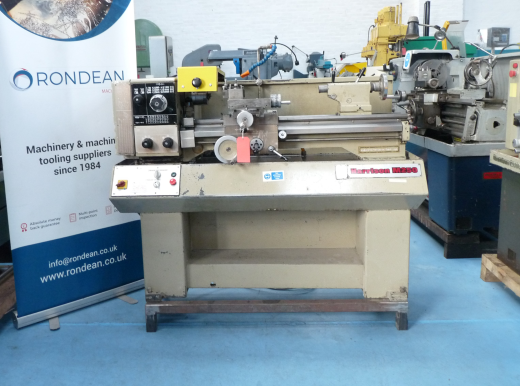

Photo 4

Harrison

Model
M250 Straight Bed Centre Lathe

Capacity
30" (750mm) Between Centres
11" (280mm) Swing Over Bed
7" (178mm) Swing over cross slide
3MT Tail Stock

Spindle Bore
1 3/8" (35mm)

Spindle Nose
D1-3” Camlock

Equipment
3 Jaw Chuck
Quick Change Tool Post (holds two tools)
Coolant
Splash Back

Safety
Lead Screw Covers
Chuck Guard

Speeds
9: 80 to 3000rpm (80, 180, 240, 360, 520, 640, 1100, 1500, 3000 rpm)

Main Motor
1.3 kW (1.8hp)

Power
Three Phase Electric's 2.9 amps

Dimensions
1605 x 735 mm weighs approx 500 Kg

Category: Lathes - general

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 19 May 2025
