Elliott 10M 10? Shaper L10505.06

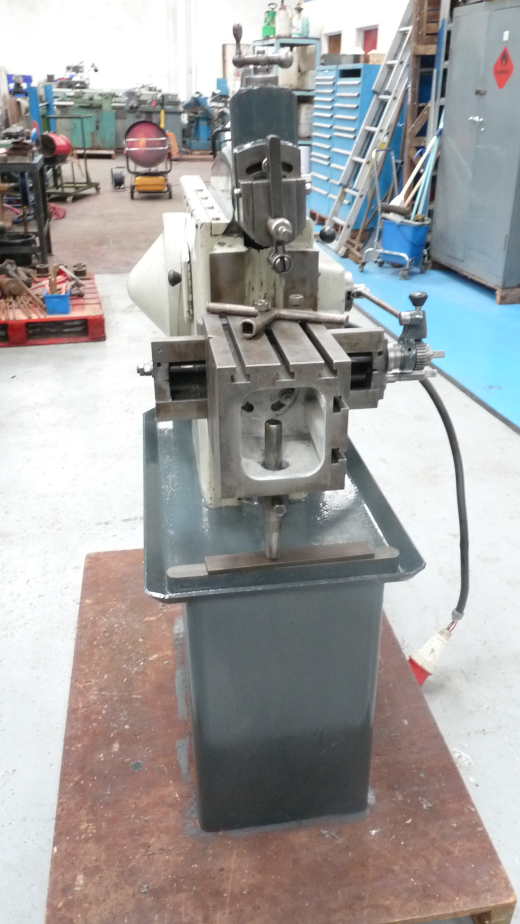

Photo 1

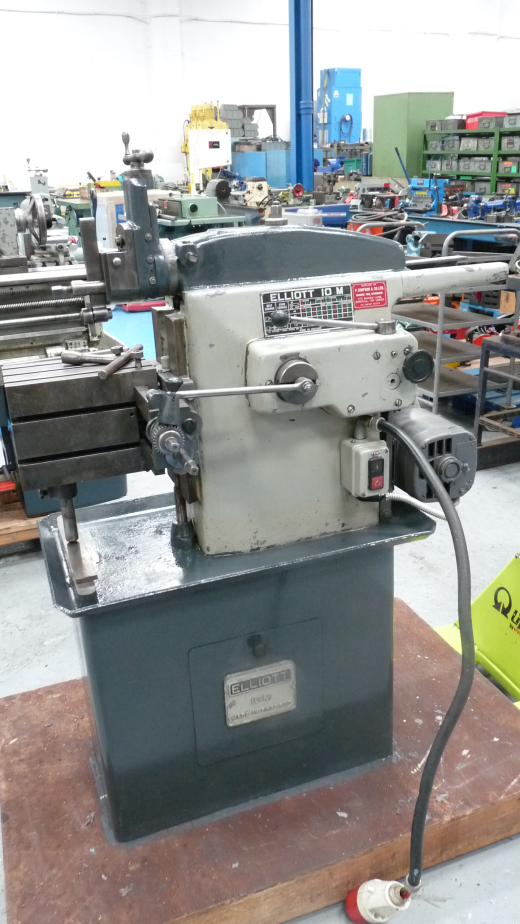

Photo 2

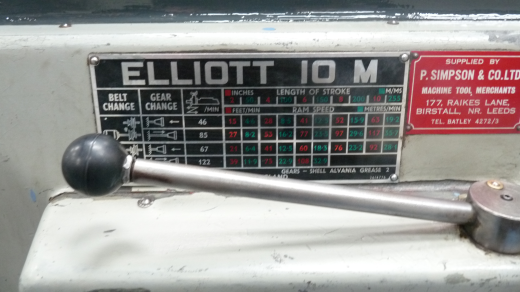

Photo 3

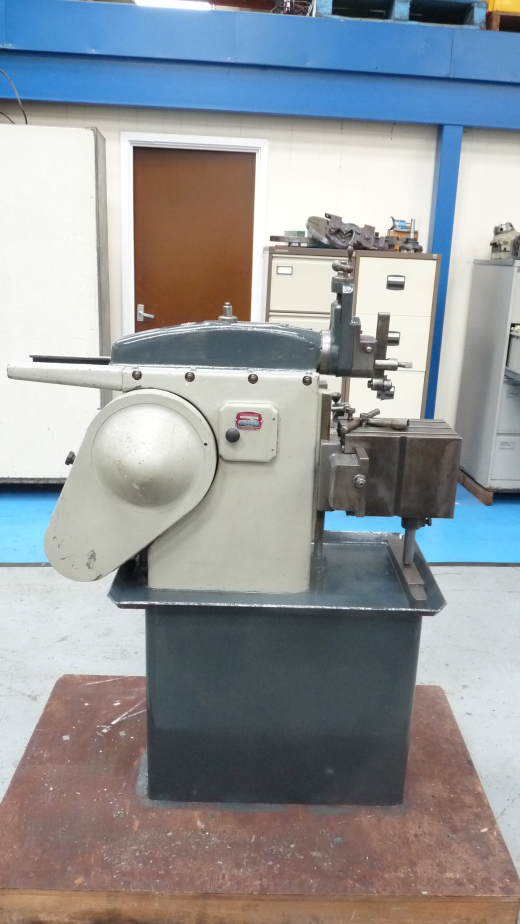

Photo 4

Elliott

Model
10M 10" Shaping Machine

Max Stroke
254 mm (10”)

Strokes per min
46-67-85-122
4 Speeds

Work Table
258 x 176mm (10 3/16” x 6 15/16””) Top Surface
215 x 190mm (8 ½” x 7 ½”) Side Surface
196mm (7 ¾”) Maximum table to ram
279mm (11”) Longitudinal traverse (max)
187mm (7 3/8”) Vertical traverse
4 cross feeds: .100 – .400mm (.004-.016”) per cut

Main Motor:
Three Phase Electrics 3/4HP 1.5 amps

Approx dimensions
1600 x 965mm 850kg

Category: Shaping

Seller's location: Co Durham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 20 May 2025
