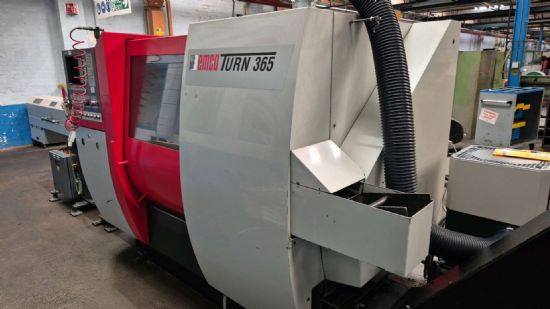

EMCO Turn 365 CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Item location: Doncaster, UK

Turning length: 600 mm
greatest pass round over bed: 600 mm
swing diameter over face slide: 360 mm
max. turning diameter: 420 mm max.
parts length: 520 mm max.
bar diameter: 65 mm slide
travel X / Z: 210 / 610 mm
turning speed range: 0 - 4200 U/min max.
torque on the spindle: 192 Nm
spindle bore: 65.5 mm
distance spindle-counter spindle: 760 mm
distance spindle - tailstock: 805 mm
rapid traverse X- and Y-axis: 24 m/min
resolution of c-axis: 0.001°
spindle indexing: 0.01°
magazine place: 12 position
power capacity: 6.7 kW
turning speed range: 0 - 4000 U/min
travel of tailstock: 500 mm max.
clamping force: 8000 N
traversing speed: ca. 20 m/min
total power requirement: 18 kW
machine weight ab.: 3900 kg
dimensions of the machine ca.: 3000 x 1910 x 1880 mm

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Jun 2025
