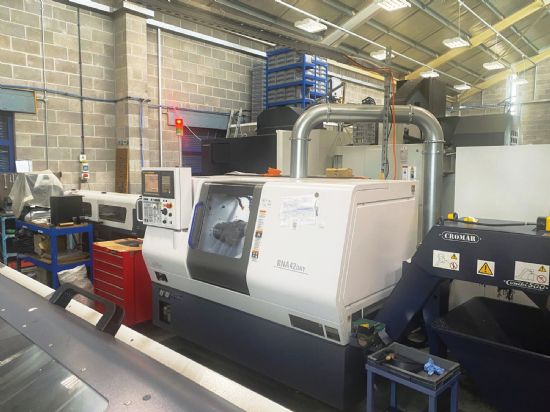

2021 MIYANO BNA 42 DHY3 7-Axis Turning Centre

Photo 1

Photo 2

Photo 3

Photo 4

Fanuc Series Oi-TF
max machining dia of bar work SP1/SP2 42/34mm,
max machining length 150mm,
power chuck SP1/SP2 5in/4in,
collet chuck type SP1 Hardinge S20, DIN173E, B&S#22D, JPN34, Hainbuch SP2 DIN173E, B&S#22D JPN,
spindle nose SP1/SP2 special flat type,
spindle motor (15min. rating/cont.)
SP1 7.5/5.5kW,
SP2 5.5/3.7kW,
spindle speed range SP1 60-6,000min-1,
SP2 50-5,000min-1,
type of turret SP1 8-stn turret,
SP2 6-stn turret,
shank height of square turning tool 20mm,
dia of drill shank 25mm,
turret indexing & clamp method: AC servo motor & curvic coupling,
slide stroke X1-axis 140mm,
Z1-axis 235mm,
Y-axis 70mm(±35),
X2-axis 140mm,
Z2-axis 360mm.
£105,000

Category: Lathes - CNC

Seller's location: Surrey, UK
