2021 MIYANO ANX 42 SYY CNC Turning Centre

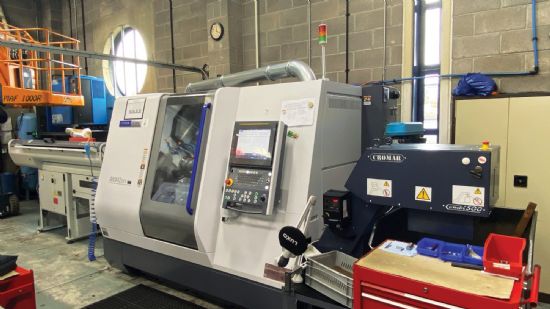

Photo 1

Photo 2

Photo 3

Photo 4

Fanuc Fs31i B control,
max machining length 130mm,
max bar capacity main spindle and sub-spindle 42mm dia,
travels X1/Z1/Y1/Z2/X2/Y2/Z3/X3
140/315/±35/430/140/±35/440/±120mm,
C-axis both spindles,
spindle speeds ~6,000rpm,
spindle power 7.5/11kW,
spindle nose 110mm dia,
chuck size 5in,
sub-spindle speeds ~6,000rpm,
sub-spindle power 7.5/11kW,
sub-spindle nose 110mm dia,
chuck size 5in,
upper turret 12 stations (all live),
speeds ~6,000rpm, power 2.2kW,
lower turret 12 stations (all live),
speeds ~6,000rpm,
power 2.2kW,
rapids X1/Z1/X2/Z2 24m/min,
Y-axis 18m/min,
Z3-axis 30m/min,
Iemca Boss 552-HS bar feed.
£150,000

Category: Lathes - CNC

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
