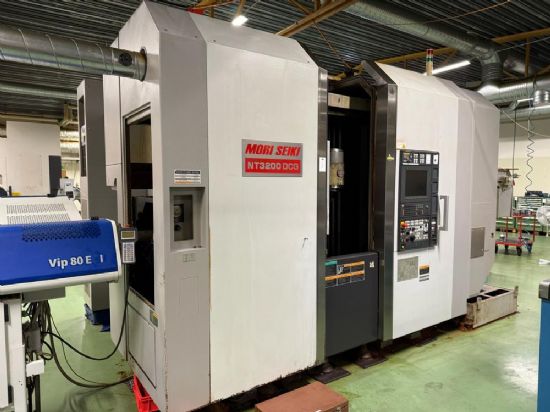

2007 Mori Seiki NT3200 CNC lathe

Photo 1

Photo 2

Photo 3

Photo 4

Run time: 7976H
Maximum turning diameter (milling head): 600mm
Maximum turning diameter (turret): 210mm
Maximum turning length: 1045mm
Spindel bore: 67mm
Number of tool spaces: 40
Spindel: Kitagawa SS1666
Spindel speed: 5000 RPM
Control system: Fanuc Series 31i
Equipped with: tool presetter,Absolent AB oil mist filter, Enomoto chip conveyor, Ercoatius coolant filter, documentation

Milling head
Maximum speed: 12000 RPM
Tool shaft size: C5
X-axis travel: 685mm
Y-axis travel: ±125mm
Z-axis travel: 1075mm
B-axis travel: ±120°
X/Z-axis rapid traverse: 50 m/min
Y-axis rapid traverse: 30 m/min

Turret
Number of tool places: 12
Driven tool speed: 6000 RPM
X-axis travel: 130mm
Z-axis travel: 970mm
X/Z-axis rapid traverse: 30 m/min

Machine dimensions LxWxH: 5200x3100x3000mm
Own weight: 14400 kg

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
