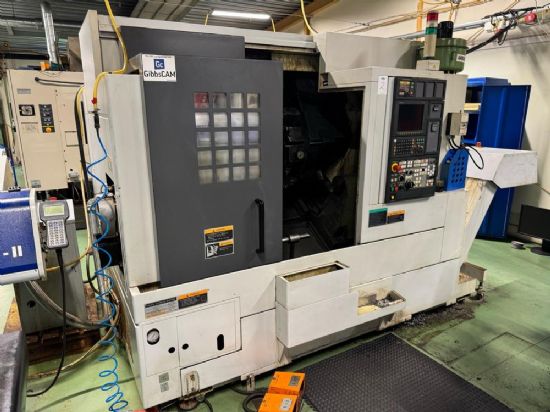

2005 Mori Seiki NL2000Y CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

Maximum Swing Over Bed: 923,8 mm
Maximum Swing Over Cross Slide: 755 mm
Maximum Turning Diameter: 356 mm
Maximum Turning Length: 510 mm
Control System: Mori Seiki MSX-850
Spindel: Kitagawa SS1666C21
Through-Spindle Hole Diameter: 65 mm
Maximum Spindle Speed: 5,000 RPM
Equipped with: Toolpresetter, parts catcher, tailstock/chuck, Arboga oil mist filter


Turret Type: BMT-style with live tooling
Number of Tool Stations: 12 (all driven)
Driven Tool Speed: 6,000 RPM
X-axis Travel: 260 mm
Y-axis Travel: ±50 mm
Z-axis Travel: 590 mm
C-axis Indexing: 0.001°
X/Z-axis Rapid Traverse: 30 m/min
Y-axis Rapid Traverse: 10 m/min

Machine Dimensions LxWxH: 2,695x2,000x2,120 mm
Machine Weight: 5,700 kg

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
