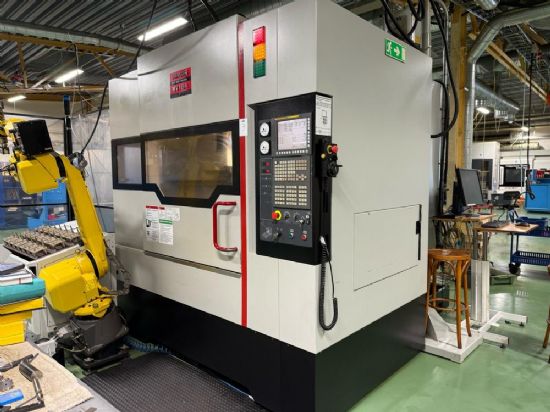

2014 Quaser MV184 Vertical multi-operation lathe

Photo 1

Photo 2

Photo 3

Photo 4

Run time: 13642H
Control System: FANUC Series 31i-B
Tool Magazine Capacity: 48
T-slot table Size: 1,200x600 mm
Maximum Table Load: 500 kg
True spindle cooling: yes
Equipped with: Losma oil mist filter, paper filter, hydraulic vise, documentation, tooling

Spindel and axis
Max Spindle Speed: 12,000 RPM
Toolholder type: BT40
X-axis Travel: 1,020 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm
equipped with C-axis
Spindle Nose to Table Surface: 100–710 mm
X/Y-axis Rapid Traverse: 40 m/min
Z-axis Rapid Traverse: 36 m/min

Machine Weight: 7390 kg
Machine Dimensions (LxWxH): 2800x2760x2860mm

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
