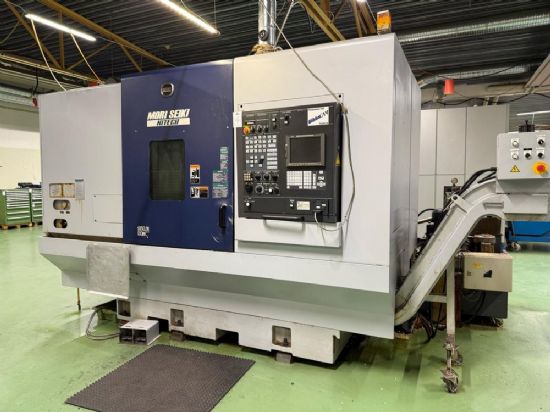

2003 Mori Seiki Hitec CH250 Multi operation lathe

Photo 1

Photo 2

Photo 3

Photo 4

Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 67 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM
Tool Magazine Capacity: 40 tools (2 × 20)
Tool Holder Type: KV4540
Control System: Fanuc series 18i
Equipped with: Absolent ab oil mist filter, enomoto chip conveyor, coolant filter, documentation

X-axis Travel: 600 mm
Z-axis Travel: 1,000 mm
Y-axis Travel: ±75 mm
B-axis travel: 858 mm
C1/C2-axis: 0.001° increments
X/Z-axis: 30 m/min
Y-axis: 15 m/min

Machine Weight: 8000 kg
Dimensions LxWxH: 3300x1930x2290mm

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
