Hitachi Seiki CH250 Multi operation lathe

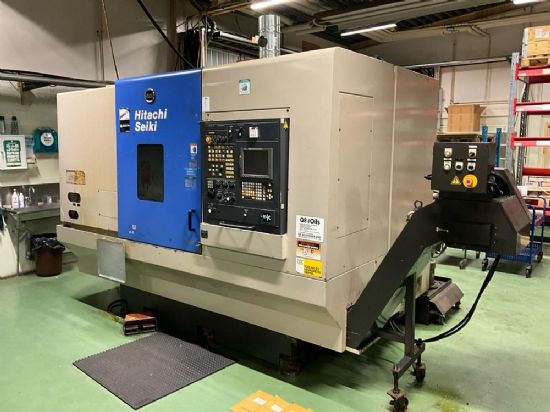

Photo 1

Photo 2

Photo 3

Photo 4

Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 65 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM
Tool Magazine Capacity: 20
Tool Holder Type: KV4540
Control System: Seicos 16T (Fanuc 16iT)

X-Axis Travel: 600 mm
Z-Axis Travel: 1,000 mm
Y-Axis Travel: ±75 mm
B-Axis Travel: 858 mm
C-Axis indexation: 0.001°
X/Z-Axis Rapid Traverse: 30 m/min
Y-Axis Rapid Traverse: 15 m/min

Machine Weight: 8,000 kg
Dimensions (LxWxH): 3,300x1,930x2,290 mm

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
