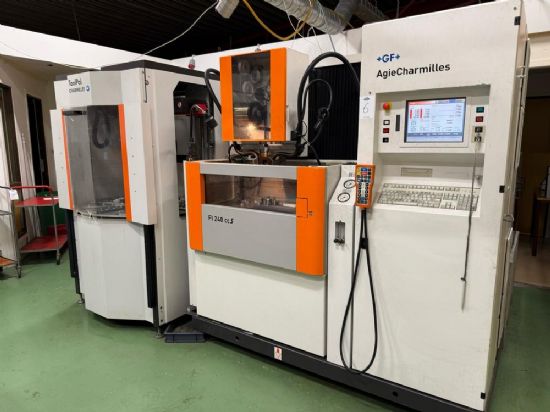

2011 Agie Charmilles FI 240 CCS EDM Eroding machine

Photo 1

Photo 2

Photo 3

Photo 4

Machining time: 5094
Control system: Charmilles CNC Control
Machine type: wire EDM
Wire Diameter Range: 0.10 – 0.30 mm
Programmable Wire Unwinding Speed: 0.5 – 15 m/min
Maximum Workpiece Dimensions: 1000x550x220 mm
Maximum Workpiece Weight: 750 kg
Table Size: 680x450 mm
Equipped with: Toolpad with 12 stations, documentation


X-Axis: 350 mm
Y-Axis: 220 mm
Z-Axis: 220 mm
U/V-Axis: ±75 mm
Taper Cutting Capability: ±30° up to 220 mm height
Axis Movement Speed: 0 – 900 mm/min

Machine Dimensions (WxDxH): 2020x2050x2000 mm
Machine Weight: 2450 kg

Category: Public Auction

Seller's location: Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 Aug 2025
