2016 +GF+ MIKRON HPM 450U 5-Axis VMC - 120 Tool Tower & Pallet Changer

Photo 1

Photo 2

Photo 3

Photo 4

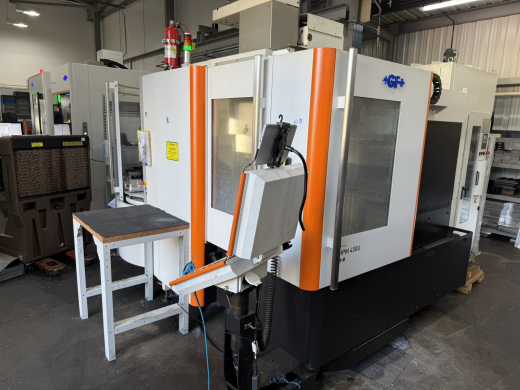

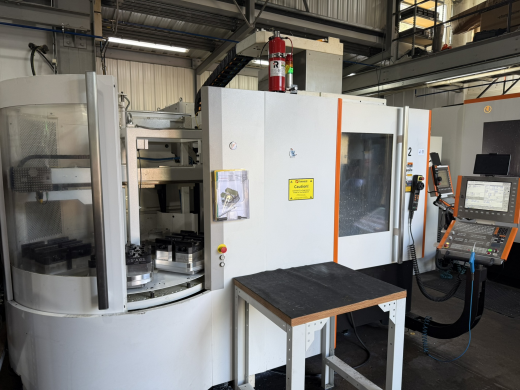

2016 +GF+ MIKRON HPM 450U 5-Axis VMC - 120 Tool Tower & Pallet Changer:
Excellent condition machine fully maintained by GF all the time we have owned it.
HISTORY
-Machine was built at +GF+ Agie Charmilles AG in Nidau, Switzerland 10/2016

-Machine came out of Renault F1 when 3 years old and we bought it from GF UK after a full service and checks with 12-month warranty. We have maintained it with GF ever since

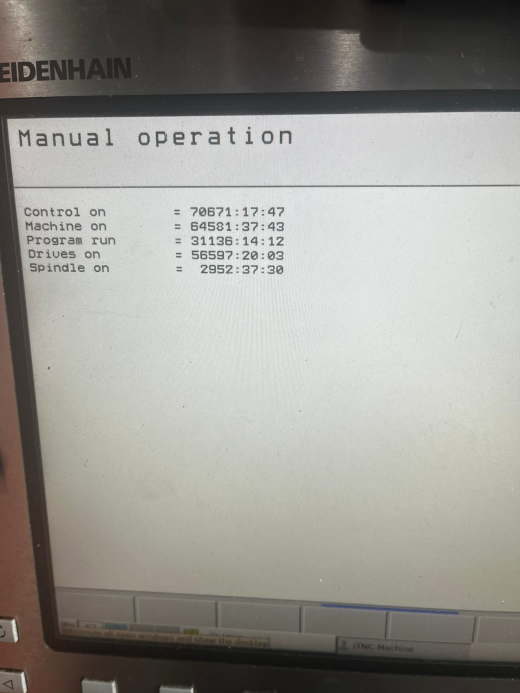

Brand New Spindle fitted less than a year ago. 2800 hours only
We also had a new Rotary table fitted at a cost of £50k three years ago

CONTROL

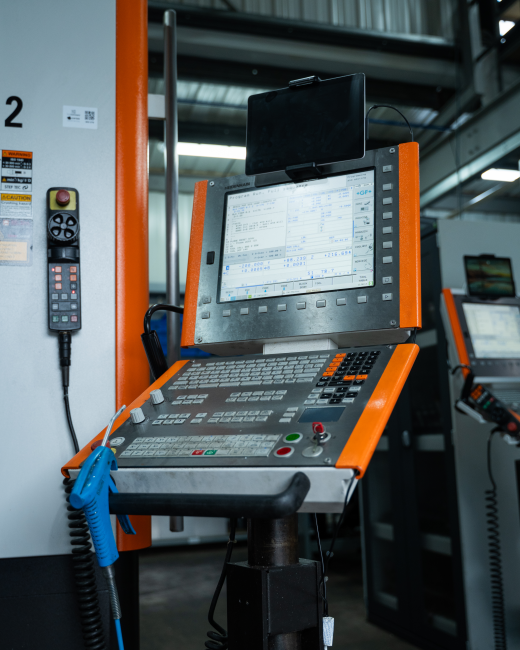

HEIDENHAIN iTNC 530 with Ethernet and electronic handwheel for part setup
Control has software cycle options 450, 451, 452, 460

WORKING RANGE
Longitudinal X-Axis..................................... (600 mm)
Transverse Y-Axis........................................... (450 mm)
Vertical Z-Axis......................................... (450 mm)
Max Workpiece Size: (450mm) Dia x (450mm) height x (150kg)
B-Axis (Tilt)....................................... -120 / +45 degrees
C-Axis (Rotary)........................................ n x 360 degrees
Number of simultaneous axes........................... 5/5 simultaneous

FEED DRIVE
Drive: Ball screws in X,Y,Z-axis
Drive: Direct Drive Torque Motors in B and C-axis
Rapid Traverse X/Y/Z................................... 866 IPM (22 m/min)
Table Rapid Speed B-Axis (Tilt)...................................... 50 rpm
Table Rapid Speed C-Axis (Rotary)................................. 140 rpm !
Maximum Acceleration X/Y/Z................................... up to 5 m/sec2

DIRECT DRIVE TORQUE MOTOR RTT (ROTARY TILT TABLE) DYNAFIX
Pallet Clamping Surface, pallet changer accepts 2 pallet sizes:
(280 x 280 mm)
(350 x 350 mm) maximum pallet size possible
Maximum workpiece weight (manual loading)............. (150 kg)
Pallet types this machine & pallet changer are equipped for:
System 3R Dynafix Number of pallet stations pallet changer is equipped with……7 x pallet stations
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION
BLUM laser tool measuring system
M&H Infrared touch probe
system 3R Dynafix automatic pallet changer with 7 x pallet stations

120 POSITION TOOL TOWER
This is an external freestanding 120 position tool tower. The tools are loaded through a gate to be stored in the multi-story rack system. An integrated control system manages the magazine pockets. For a tool change, the tool is picked up by a machine-specific handling unit and transferred to the spindle hand-over position parallel to processing time. There the tool is picked up by the spindle.

Number of magazine places……………………….120 positions
Spindle taper…………………………………………HSK-A63
Maximum tool diameter……………………………..(80 mm)
Maximum tool diameter with unoccupied adjacent positions.. (125 mm)
Maximum tool length………………………………… (270 mm)
Maximum permitted tool weight…………………… (6 kg)
Number of pockets for tool length up to (270 mm)…70
Number of pockets for tool length up to (160 mm)…..50

WEIGHT
Including pallet changer........... Approximately (7,700 kg)
Machine base....................... Polymer concrete (man-made granite)

STEP-TEC SWISS MADE SPINDLE
Spindle taper.................................................. HSK-A63
Spindle RPM................................................. 100-20,000 rpm
Spindle power................................... 40 HP (30 kW)
Spindle torque 40% ED............................... 67 Ft/Lb (91 Nm)
Maximum tool diameter……………………..(80 mm)
Maximum tool length from the spindle nose…. (350 mm)
Maximum tool weight………………………….. (6 kg)

EQUIPPED WITH:
Complete machine enclosure
Pallet changer Dynafix
(600 l) band filter coolant tank with micro paper filtration system
-18-80 bar (261-1,160 PSI) adjustable high-pressure Coolant Thru Spindle (CTS)
-Flow rate 5.3 gallon/min (20 l/min). Unit is a KNOLL KF400|FKA/600 Litre
Lift up scraper chip conveyor for higher demands for aluminium machining
M&H Infrared touch probe
BLUM laser tool measuring system
Tool blow-off unit
Blow-off unit for laser measuring system
Tilting the working plane:
This option activates the optional HEIDENHAIN software cycle 19
“APS” Option (Advance Process System)
“ITC” Option (Intelligent Thermal Control)
“ITC-5X” Option (Intelligent Thermal Control for 5 axis)
DXF file import
Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00004” (1 um)
Direct measuring system HEIDENHAIN rotary encoders B/C 0.00004” (1 um)
External spindle chiller
Comes with 7 x (350 x 350 mm) maximum pallet size possible


To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details, and we encourage an inspection of the machine(s) and accessories prior to purchase.


Category: Machining centres

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Aug 2025
