Wilkins & Mitchell 100 Ton Hot Brass Stamping Press B24HB-1-8

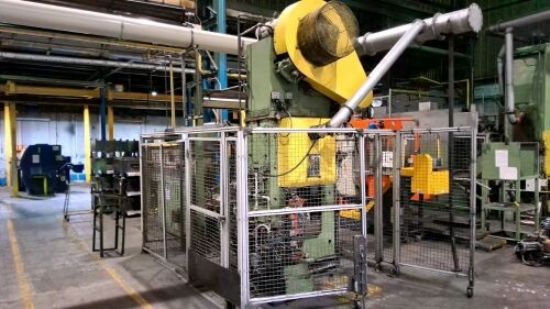

Photo 1

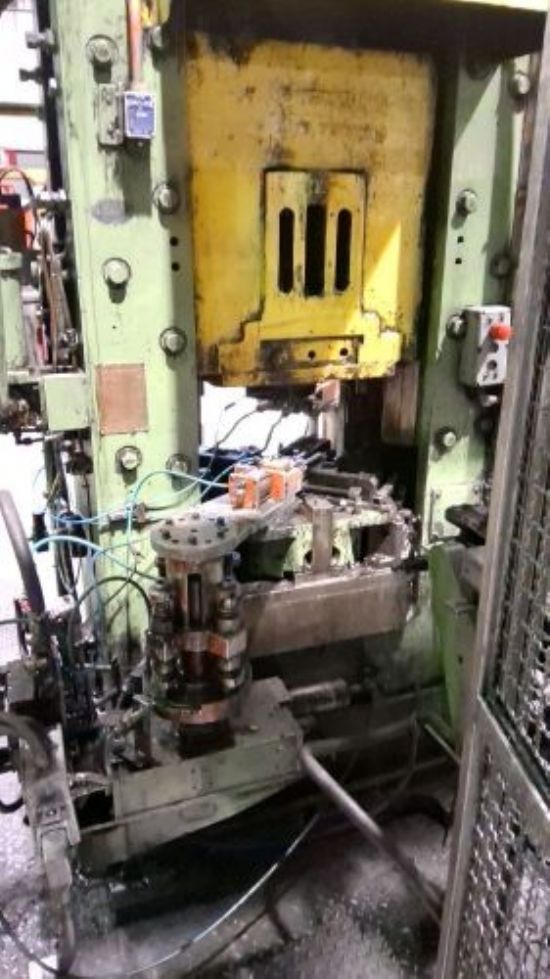

Photo 2

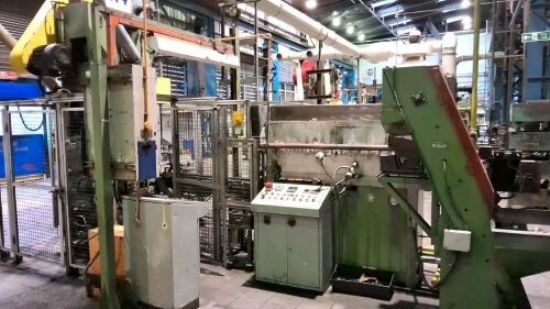

Photo 3

Photo 4

Capacity: 100 Ton
Stroke: 200 mm (8”’)
Speed: 60 strokes per min.
Slight adjustment (by hand): 75 mm (3”)
Min./Max. Shut Height: 325/400 mm (13”/16”)
Slide Left to Right: 500 mm (20”)
Slide Front to Back: 425 mm (17”)
Bolster Left to Right: 600 mm (24”)
Bolster Front to Back: 625 mm (25”)
Bolster thickness: 145 mm (5-3/4”)
Working height: 755 mm (29-3/4”)
Cushion capacity: 10 Ton (11 Long Ton)
Max. Cushion stroke: 100 mm (4”)
Platten, Left to Right: 575 mm (22-3/4”)
Platten, Front to Back: 425 mm (17”)
FOUR SLIDE HORIZ. SPLIT DIE SUB PRESS
For use with 100 Ton W(M Press B24HB1-8
No. of Stations available for Punching or Cutting: 4
Die Space: 150 x 150 x 114 mm
Punches:
· max diameter: 30 mm
· max. stroke:L 63 mm
Weight approx.: 1.100 kg

Category: Public Auction

Seller's location: The Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Sep 2025
