Inductotherm/Russ Brass Melting & Technica Guss Horizontal Billet Casting Line

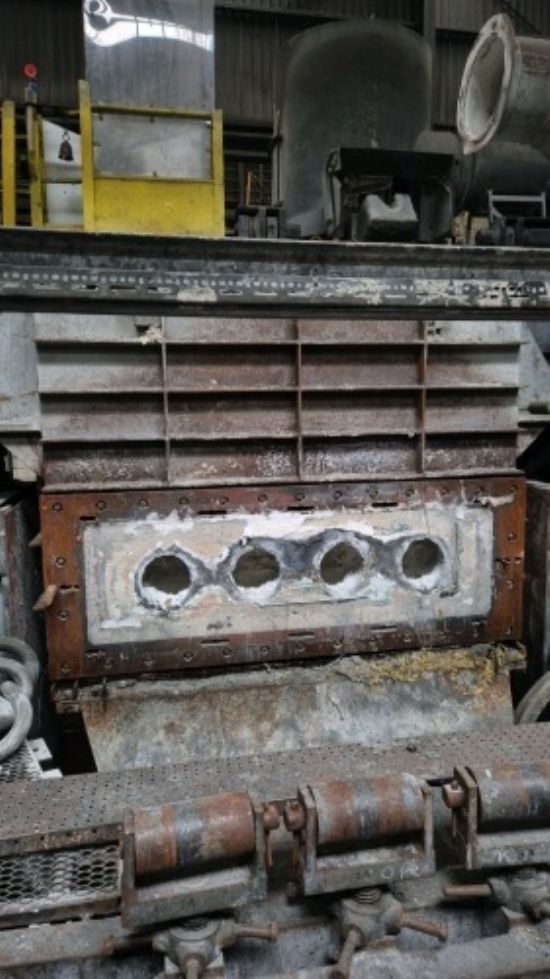

Photo 1

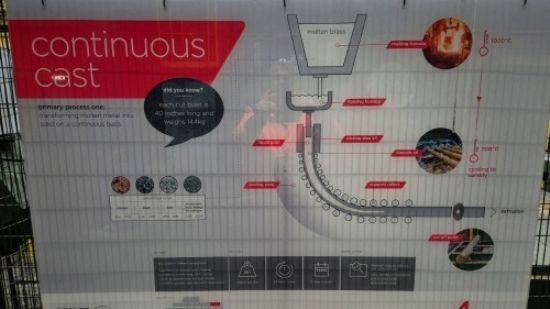

Photo 2

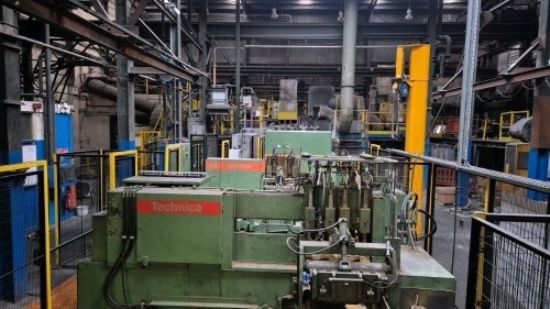

Photo 3

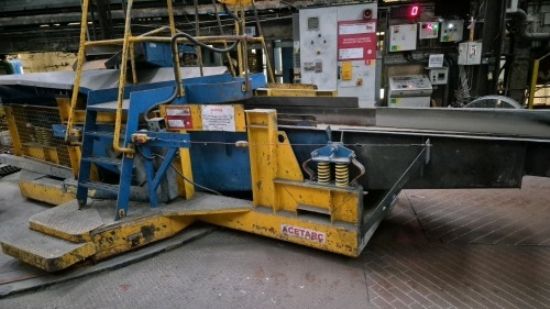

Photo 4

Consisting of:
Acetarc furnace charging system (new 2014) including LNS chip conveyer
6 ton Storage Hopper
Skip Buck Charging Tower w/ Bucket Elevating System
(2) Acetarc Vibratory Feeders
(1) Acetarc Vibratory Rotary Feeder
8 Metric Ton per Hour Charging System
Furnace #1 – 1750 kw x 6 Metric Ton Inductothem Coreless Melting/Holding Furnace (new 2013)
Furnace #2 – 1500 kw x 6 Metric Ton Russ Coreless Melting/Holding Furnace
Furnace #3 – 250 kw casting furnace
Furnace #1 Inductotherm (detailed)
Manufactuer – Inductotherm
Year – 2013
1750 kw, 6 Metric ton, 1030 Degrees Celsius Max, 2451 KVA Total Connected Load, Batch Induction Melting/Holding Furnace
984mm Crucible Dia., 1220mm Coil Dia., 286mm Clear Crucible Depth, 1122mm Bath Depth, 1770 kg Furnace Lining Weight
Water Cooling System
Fume Extraction
Hydraulic Unit
4-Strand Technica Guss Horizontal Casting Line Year 1976
Technica Guss Cooling Powered Pullout Pinch Rolls
(2) Technica Guss Ingot Billet Saws to cut Master Billet
Billets 1.000 mm (40") x 152,4 mm (6") diam. x 157 kg (347lbs) x 20 billets/hr.
Russel Finish Billet Saw to cut 500mm (20") lengths with entry/exit tables & billet delivery system
Batch Alloy Casting Cell:
Furnace #4 & #5 – 200 kw Birlec Batch Alloy Furnaces
w/ Brookes Charging Cart Capable of Casting three (3) brass ingots
Additional equipment with the system:
2000kva 12 pulse step-down transformer
Carter cooling tower for Birlec Furnaces
Carter cooling tower for die cooling
Baltimore cooling tower
Camfil Farr gold series furnace extraction unit
Tepostop dry powder fire suppression system
Abroga Spinner
Street overhead crane
