1250 MT Presezzi Brass Rod Oil Hydraulic Extrusion Press Line w/ OCN Handling System (New 2009)

Photo 1

Photo 2

Photo 3

Photo 4

SERIAL NUMBER – 2671-2009
PRESS TONNAGE – 1250 MT
WORKING PRESSURE – 260 BAR
BILLET DIAMETER – 145MM
BILLET LENGTH MAX – 650MM
MAIN CYLINDER (SINGLE ACTING)
WORKING PRESSURE – 260 BAR
RAM DIAMETER – 760MM
POWER – 1149 MT
SIDE CYLINDERS (DOUBLE ACTING)
OPERATING PRESSURE – 260 BAR
BORE – 160MM
ROD DIAMETER – 100MM
THRUST FORCE DURING EXTRUSION – 107 TON
THRUST FORCE DURING RETURN – 65 TON
TOTAL MAIN CYLINDER AND SIDE CYLINDER TRUST FORCE – 1256 TON
CONTAINER MOVEMENT (DOUBLE ACTING)
OPERATING PRESSURE – 260 BAR
BORE – 160MM
ROD DIAMETER – 100MM
SEALING FORCE AT 300 BAR – 107 TON
OPENING FORCE AT 280 BAR – 65 TON
SHEAR CYLINDER (DOUBLE ACTING)
OPERATING PRESSURE – 260 BAR
BORE – 100MM
ROD DIAMETER – 70MM
SHEARING FORCE – 20 TON
ASCENDING FORCE – 10 TON
HIGH PRESSURE REXROTH PUMP GROUP:
MAIN PUMPS
NUMBER OF PUMPS – 3
MANUFACTURED – BOSCH REXROTH
PUMP TYPE – A3VSO0500HSE/30R-PPH13N00
OPERATING PRESSURE – 260 BAR
FLOW RATE – 500 CM3/ROTATION PER PUMP
ROTATION SPEED – 1000 RPM PER PUMP
POWER – 200 KW PER PUMP
AUXILLARY PUMPS
NUMBER OF PUMPS – 1
MANUFACTURED – BOSCH REXROTH
PUMP TYPE – A10VSO140DFR/31R-PPB-12NOO
OPERATING PRESSURE – 160 BAR
FLOW RATE – 140 CM3/ROTATION PER PUMP
ROTATION SPEED – 1500 RPM PER PUMP
POWER – 55 KW PER PUMP
PILOT PUMP
NUMBER OF PUMPS – 1
MANUFACTURED – BOSCH REXROTH
PUMP TYPE – A10VSO45 DFR/31-PPA12NOO
OPERATING PRESSURE – 160 BAR
FLOW RATE – 45 CM3/ROTATION PER PUMP
ROTATION SPEED – 1500 RPM PER PUMP
POWER – 18.5 KW PER PUMP
CONTAINER PUMP
NUMBER OF PUMPS – 1
MANUFACTURED – BOSCH REXROTH
PUMP TYPE – A11VO40DR/10R-NPC12NOO
OPERATING PRESSURE – 300 BAR
FLOW RATE – 40 CM3/ROTATION PER PUMP
ROTATION SPEED – 1000 RPM PER PUMP
POWER – 15 KW PER PUMP
MAIN PRESS LINE COMPONENTS / FEATURES

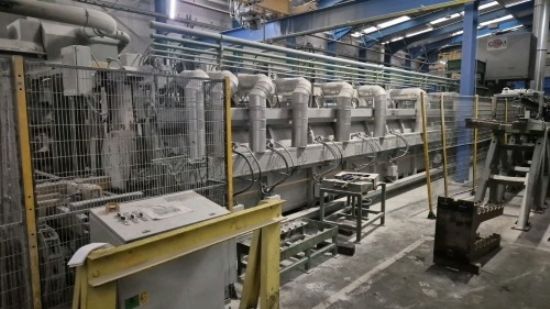

COIM AUTOMATED BILLET FURNACE WITH INFEED TABLE
BILLET LOADING STATION
QUICK CHANGE DIE CHANGEOVER TABLE
BUTT SHEAR
OCN SINGLE PULLER

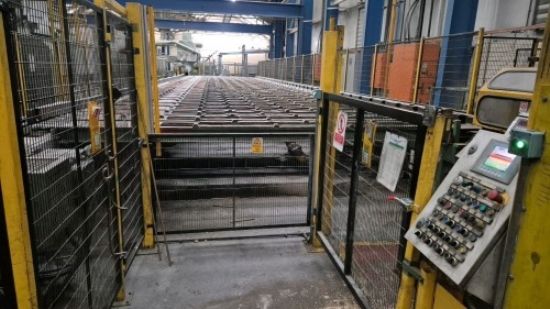

OCN WALKING BEAM COOLING TABLE
OCN ENTRY FINISH SAW FEED TABLE
OCN FINISH SAW
OCN EXIT BUNDLING TABLE

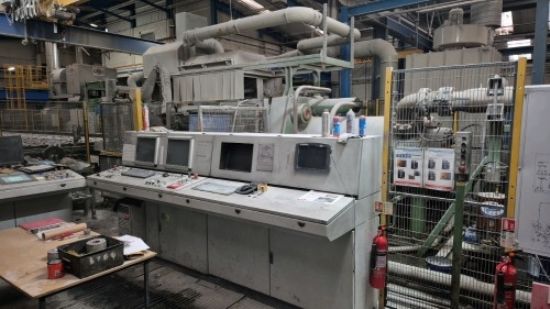

PRESEZZI OPERATORS DESK (LEFT HAND DIRECTION)

Category: Public Auction

Seller's location: The Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Sep 2025
