Fully Automatic Nickel/ChromeE Plating Plant, New 2012

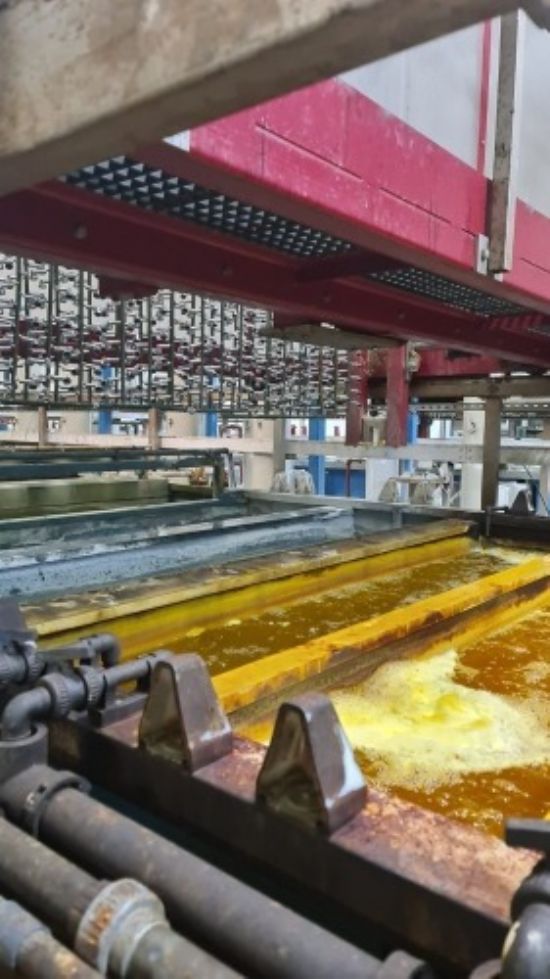

Photo 1

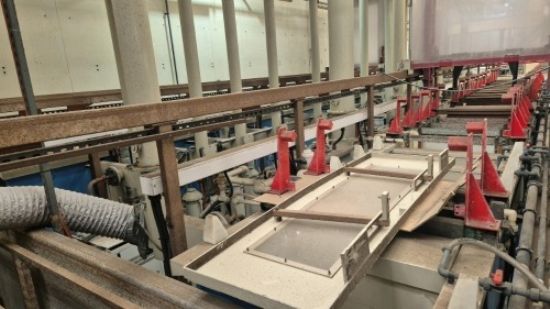

Photo 2

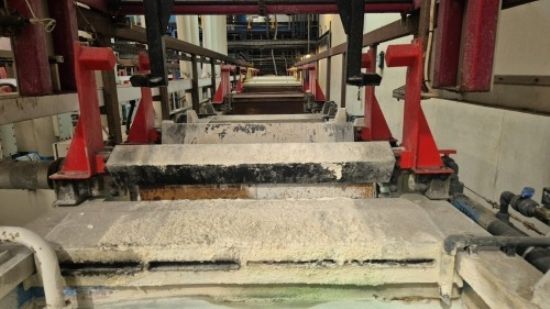

Photo 3

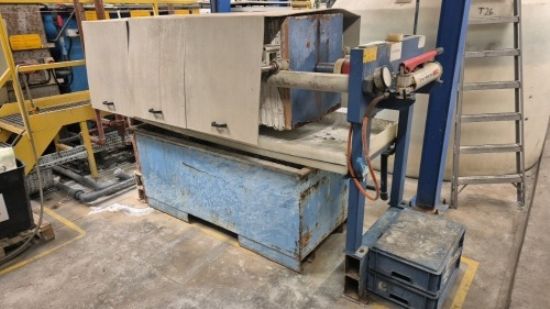

Photo 4

MANUFACTURER – PROCESS MANUFACTURING LTD.
YEAR – 2012
TYPE - FULLY AUTOMATED NICKEL & CHROME PLATING PLANT
PROCESSES – NICKEL CHROME, NICKEL GOLD, JIG STRIP
PRODUCT – BRASS / NON-FERROUS
NUMBER OF TANKS – 42
OVERHEAD CONVEYOR – 55 METER LONG
OVERALL DIMENSIONS OF PLATING LINE – 37 METERS LONG 12 METER WIDE (EXCLUDING FAN PLATFORM AND WORKING HEIGHT)
FUME EXTRACTION BEYOND LINE TO ATMOSPHERE – 60,000 CUBIC FEET/MINUTE IN 3 SYSTEMS
AUTO WATER TOP UP ON TANKS – 2,3,4,7,10,11,14,15,33, 36 WITH VALED WATER TOP UP TANK 39
FAN SCRUBBER SYSTEMS – 3 (30,000 CFM)
BABCOCK WANSON THERMAL FLUID BOILER – (2) THERMAL FLUID HEATER TPC-650 LN-V WITH PUMPS, 756 KW MAX OUTPUT
WELL DRYING OVENS – (2) SINGLE INTERNAL WELL 700 LONG X 2810 WIDE X 1070 DEEP
TANK CONFIGURATION:
TANK 1 / TANK 42 – LOAD/UNLOAD
800 X 9476 X 1120MM TANK SIZE
TANK 2 – SOAK CLEAN 144
65/80 DEGREES CELCIUS
1526 X 2803 X 1120MM TANK SIZE
TANK 3 – ULTRASONIC
65/80 DEGREES CELCIUS
1400 X 2803 X 1120MM TANK SIZE
TANK 4 – SOAK CLEAN 144
65 DEGREES CELSIUS
770 X 2803 X 1120MM TANK SIZE
TANK 5 – RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 6 – RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 7 – SOAK CLEAN 144
65 DEGREES CELSIUS
770 X 2803 X 1120MM TANK SIZE
TANK 8 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 9 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 10 - SOAK CLEAN 144
65 DEGREES CELSIUS
770 X 2803 X 1120MM TANK SIZE
TANK 11 – ANODIC CLEAN
60 DEGREES CELSIUS
1580 X 2803 X 1120MM TANK SIZE
TANK 12 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 13 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 14 – DRY ACID SALT
30 DEGREES CELSIUS
630 X 2803 X 1120MM
TANK 15 – ACID DRIP
30 DEGREES CELSIUS
630 X 2803 X 1120MM
TANK 16 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 17 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 27 – WET CROSS TRANSFER
800 X 9476 X 1120MM TANK SIZE
TANK 26 – ANODE MAINTENANCE
450 X 2803 X 1120MM TANK SIZE
TANK 25 – NICKEL BATCH ETCH
1600 X 2803 X 1120MM TANK SIZE
TANK 24 – RINSE
605 X 2803 X 1120MM TANK SIZE
TANK 23 – RINSE
605 X 2803 X 1120MM TANK SIZE
TANK 22 – NICKEL DO
630 X 2803 X 1120MM TANK SIZE
TANK 21 – NICKEL PLATE
60 DEGREES CELSIUS
1580MM X 2803 X 1120MM TANK SIZE
TANK 20 – NICKEL PLATE
60 DEGREES CELSIUS
1580MM X 2803 X 1120MM TANK SIZE
TANK 19 – NICKEL PLATE
60 DEGREES CELSIUS
1580MM X 2803 X 1120MM TANK SIZE
TANK 18 – NICKEL PLATE
60 DEGREES CELSIUS
1580MM X 2803 X 1120MM TANK SIZE
ANODE MAINTENANCE
OPEN X 2803 X 1120MM TANK SIZE
TANK 28 – CHROME PLATE
42 DEGREES CELSIUS
1600 X 2803 X 1120MM TANK SIZE
TANK 29 – CHROME PLATE
42 DEGREES CELSIUS
1600 X 2803 X 1120MM TANK SIZE
TANK 30 – Cr DRAG OUT
605 X 2803 X 1120MM TANK SIZE
TANK 31 – RINSE
640 X 2803 X 1120MM TANK SIZE
TANK 32 – RINSE
605 X 2803 X 1120MM TANK SIZE
TANK 33 – Cr NEUTRALISE
630 X 2803 X 1120MM TANK SIZE
TANK 34 – RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 35 - RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 36 – LEAD SEAL
42 DEGREES CELSIUS
817 X 2803 X 1120MM TANK SIZE
TANK 37 – RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 38 – RINSE
705 X 2803 X 1120MM TANK SIZE
TANK 39 – HOT RINSE
80 DEGREES CELSIUS
700 X 2803 X 1120MM TANK SIZE
TANK 40 – DRYER
80 DEGREES CELSIUS
700 X 2803 X 1120MM TANK SIZE
TANK 41 – DRYER
80 DEGREES CELSIUS
700 X 2803 X 1120MM TANK SIZE
TANK 42 / TANK 1
800 X 9768 X 1120MM TANK SIZE
