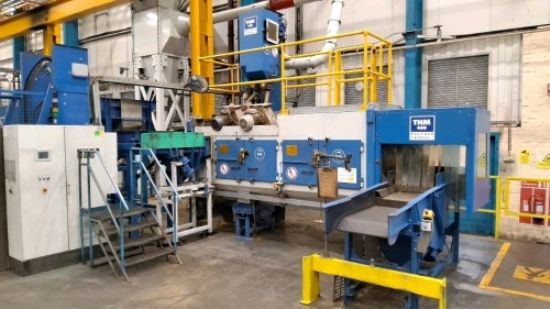

Walther Trowal THM400/2 Shot Blast Machine (2013)

Photo 1

Photo 2

Photo 3

Photo 4

Year – 2013
Model – THM-400/2
Blast Wheels – 2
Amperage per wheel – 14
Speed per wheel – 3400/per minute
Transport time – 180/seconds
Shot Blast Time – 120/seconds
Load carrying capacity of the troughed belt conveyor
Filling amount, total 100 kgs
max. weight per piece 2 kgs
Smallest dimension per workpiece
ca. 25 x 25 x 5 mm
Largest dimension per workpiece
150 x 150 x 80 mm
Diameter of the troughed belt conveyor 400 mm
Number of blast wheels 2 x 320 mm wide
Power of blast wheels 7.5 kW
Operational voltage 400 V AC
Electrical connection value approx. 44 kVA
Required suction capacity of the dedusting system 3000 Bm 3 /h
Flow rate in the collecting pipe of the conduit 20 m/s
Required static negative pressure in the collecting muff 600-800 Pa
Initial filling of blast media 120 dm 3

Category: Public Auction

Seller's location: The Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Sep 2025
