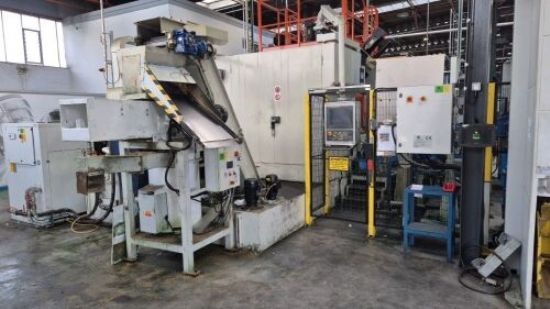

BTB TRO 8S 14U ISO 40 CNEL Transfer Machine (2017)

Photo 1

Photo 2

Photo 3

Photo 4

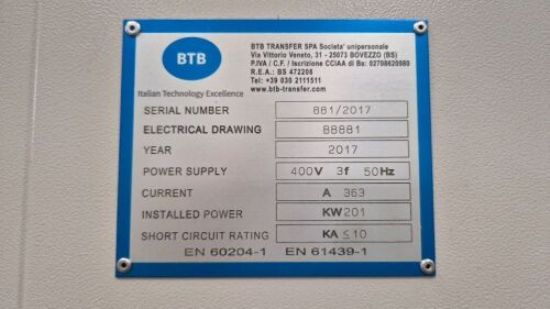

Basic Information:
Manufacturer: BTB Transfer SPA, Italy
Serial Number: BB 881-2017
Year of Construction: 2017
Mass: 23,000 kg (23 tonnes)
Machine Analysis:
A high-precision rotary transfer machine
A specialized type of automated manufacturing equipment used for high-volume production.
Multi-station automated production
Complex part processing with multiple operations
Technical Specifications
Stations: 8 machining stations
Units: 14 machining units
Control System: CNC-controlled (likely Siemens or Fanuc)
Tooling Interface: ISO standard, facilitating compatibility with various tools
Machining Capabilities: Simultaneous multi-axis operations, including drilling, milling, tapping, and turning
Workpiece Handling: Automated loading and unloading systems
Coolant System: Integrated high-pressure coolant delivery
ISO 40 tool taper - a standardized spindle taper system
CNEL: Indicates the machine meets specific European noise emission standards
Operational Features
Precision: High repeatability and accuracy for tight tolerance components
Efficiency: Designed for continuous operation with minimal downtime
Flexibility: Capable of handling a variety of part geometries and sizes
Maintenance: Equipped with diagnostic systems for predictive maintenance
Lifting/handling equipment:
Castelletto Uzzone ERI-2000
Model: ERI-2000
Serial Number: 1257
Year: 2017
Power: 2.2 kW
Capacity: 2000 kg (2 tonnes)
Robotic system:
Autoazione Industriali, type: R.C.S.T./C.VIS.;
System Details:
Manufacturer: Automazione Industriali (Italian automation company)
Year: 2017
Type: R.C.S.T./C.VIS. (likely Robot Control System with Computer Vision)

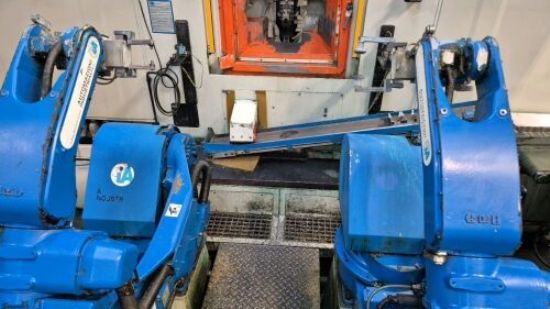

Robots: Dual MH24 units from Yaskawa Motoman:
Yaskawa Motoman MH24 Specifications:
Key Performance Data:
Payload: 24 kg
Reach: 1,717mm
Repeatability: ±0.08mm
Axes: 6-axis articulated arm
Weight: Approximately 540 kg per robot
Controller: DX200 or NX100 (depending on configuration)
Technical Specifications:
Maximum speed:
J1 (S-axis): 170°/sec
J2 (L-axis): 170°/sec
J3 (U-axis): 175°/sec
Working envelope: Spherical reach of 1,717mm
Mounting: Floor, ceiling, or angle mounting options
Protection rating: IP67 (wrist), IP54 (arm)
System Integration (R.C.S.T./C.VIS.):
Computer Vision System - For part recognition and positioning
Dual robot coordination - Synchronized operation capability
Advanced control system - Integrated with vision feedback

Category: Public Auction

Seller's location: The Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Sep 2025
