400 Ton Hydromec HF4000 Non-Ferrous Hot Forging Press Line.

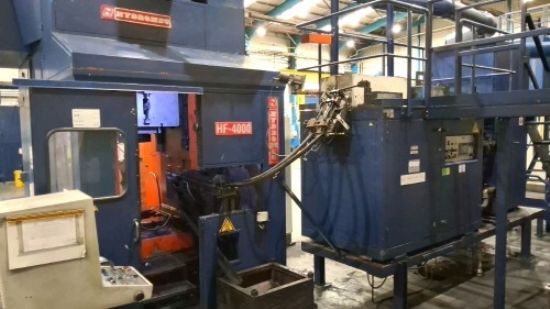

Photo 1

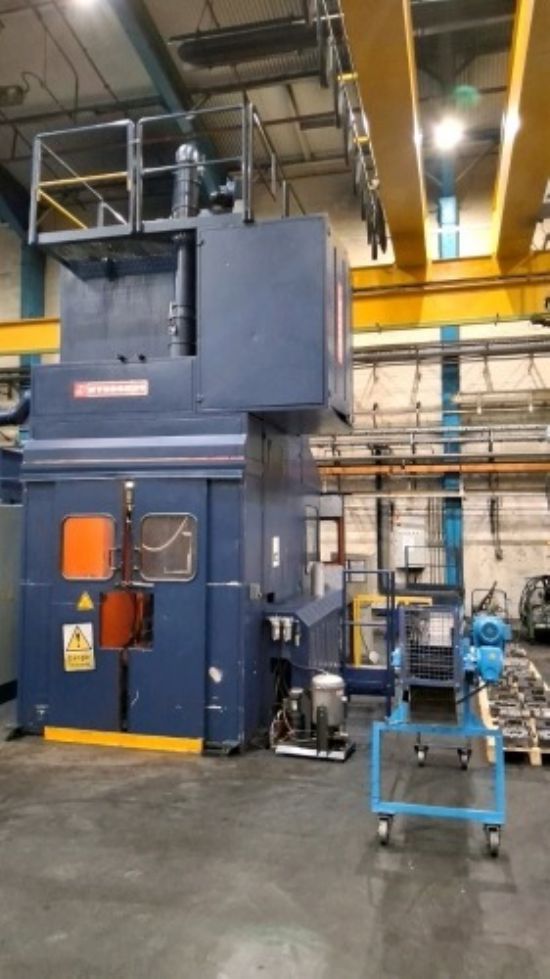

Photo 2

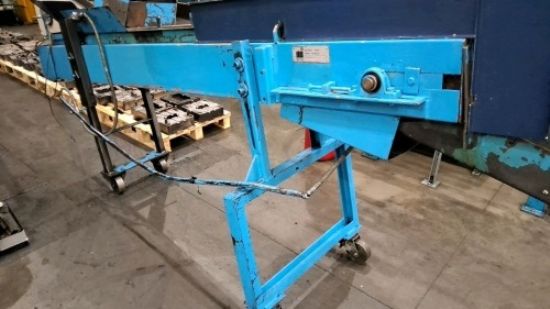

Photo 3

Photo 4

MANUFACTURER – HYDROMEC
YEAR – 1997
SERIAL NUMBER - 445
MODEL – HF4000 C/D
MATERIAL – NON-FERROUS
TONNAGE – 400 TON (4000 KN)
STROKE – 380MM
STROKE PER MINUTE (SINGLE STROKE) – 35-45
RAM ADJUSTMENT RANGE – 100MM
CLEARANCE (STROKE TO BOTTOM, ADJUSTMENT TO TOP) – 665MM
SIZE OF TOOL MOUNTING PLATE – 1000MM X 1000MM
MAIN PRESS MOTOR – 59 KW
MAIN MOTOR RAM ADJUSTMENT – 2.2 KW
CUSHION FORCE – 70 TON (700 KN)
CUSHION STROKE – 40 – 120MM
INCLUDES:
AUTOMATED PICK AND PLACE ROBOT
FULLY AUTOMATED SLUG LOADING STATION WITH FURNACE/CONVEYANCE
C.E.F.I. F09 SLUG FURNACE (NEW 1997) , 300 KW POWER
ELECTRICS
PRESS CONTROLS

Category: Public Auction

Seller's location: The Netherlands
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 3 Sep 2025
