CORREA FP40/40 - 895234 CNC Milling machine - Bridge type

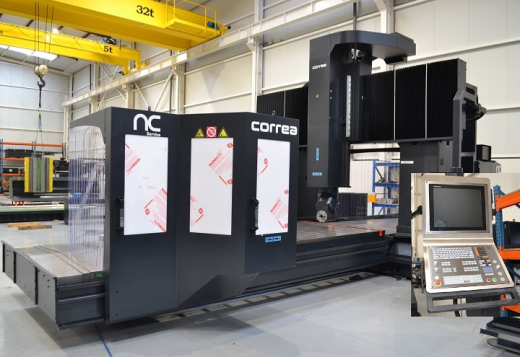

Photo 1

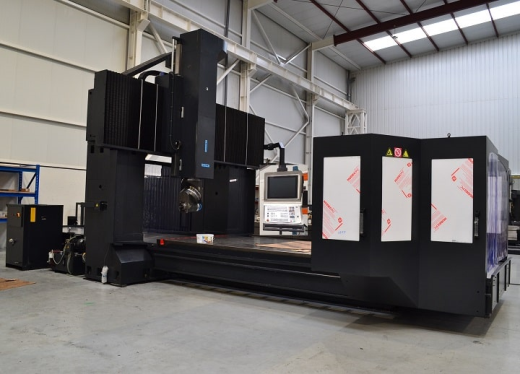

Photo 2

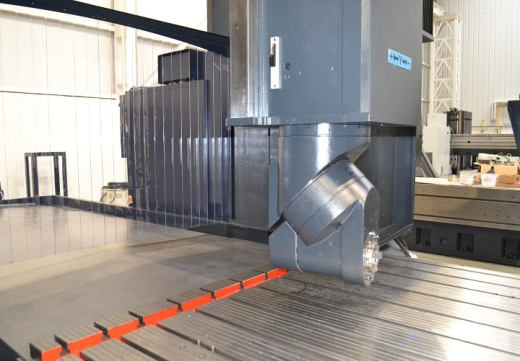

Photo 3

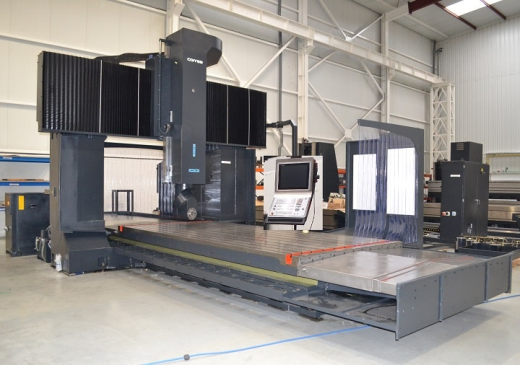

Photo 4

Control: NUEVO/NEW HEIDENHAIN TNC-i640
Year: 2007

• Table dimensions: 4500 x 2000 mm
• Number of T slots: 11
• T slots dimensions: 22 mm

• X axis traverse: 4000 mm
• Y axis traverse: 3000 mm
• Z axis traverse: 1000 mm
• Vertical capacity (VC): 240 - 1240 mm
• Distance between columns: 2500 mm

• Auto-indexing differential head (UAD - 0,1º)
• Tool clamping system: Hydraulic
• Taper nose: ISO50
• Speed range: 6000 rpm
• Spindle power: 30 kW

• Feedrate: 5000 mm/min
• Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

• Maximum weight on table: 10000 Kg
• Machine weight approximate: 35500 Kg
• Machine dimensions approximate: 10975 x 4770 x 5345 mm

• Guarding with 2 doors and new perimetral safety fence
• Automatic tool changer: ATC-60 (sale option with no ATC)
• Chip conveyor: 1 transversal
• Electronic handwheel: New HR-510
• Coolant: External & internal high pressure through spindle
