Tacchi HD/1450 – 725 x 4000mm CNC Lathe (2012)

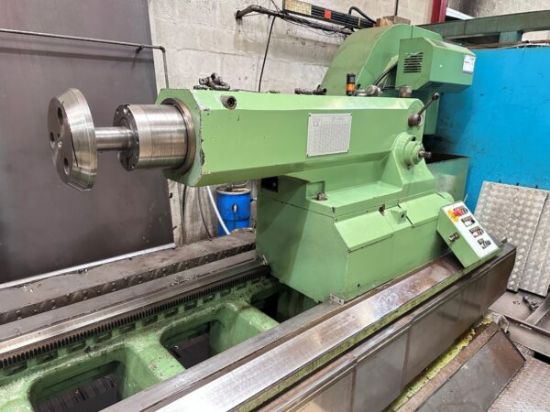

Photo 1

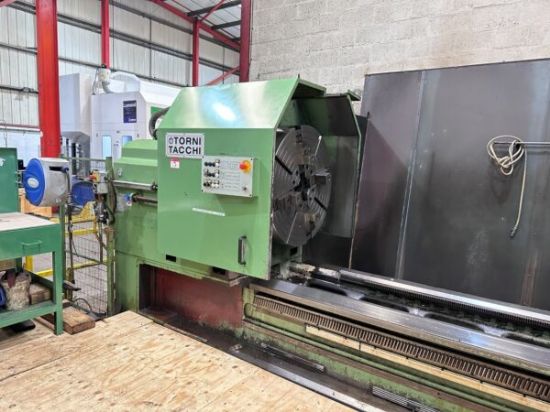

Photo 2

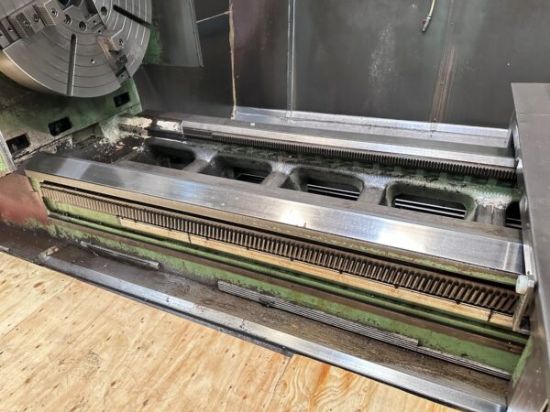

Photo 3

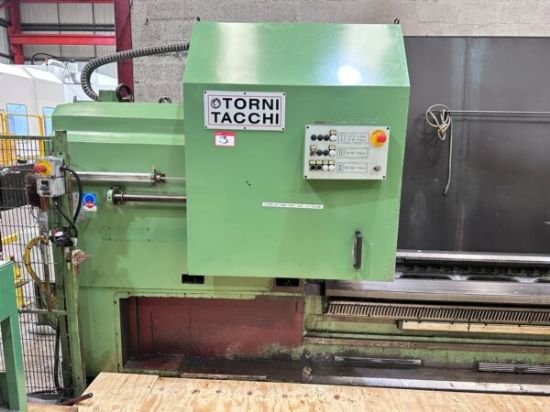

Photo 4

Serial Number: 7264
Year: 2012
Control: Fanuc OiTD CNC
Condition: Used – good working order
Technical Specifications:
Centre height: 725mm
Swing over bed: 1450mm
Swing over cross slide: 1000mm
Distance between centres: 4000mm
Main drive motor: 60 kW
Maximum weight between centres (unsupported): 15,000 kg
Spindle speed range: 1.9 – 560 rpm
Features & Equipment:
2 x 3-point steady rests
Handwheel
Swarf conveyor
4-position hydraulic toolpost
4-jaw chuck
Fanuc OiTD CNC control

Description:

The Tacchi HD/1450 CNC Lathe is a large-capacity heavy-duty CNC turning machine designed for precision machining of oversized workpieces. With a swing of 1450mm over the bed, 4000mm between centres, and a maximum part weight capacity of 15,000kg, it is ideally suited for heavy engineering applications. Equipped with a 60kW main drive motor, Fanuc OiTD control, hydraulic toolpost, twin steadies, and swarf conveyor, this lathe delivers both power and accuracy for demanding turning operations.

Category: Lathes - CNC

Seller's location: Nottinghamshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 17 Sep 2025
