Sunnen GH210 x 10000mm Horizontal Hone

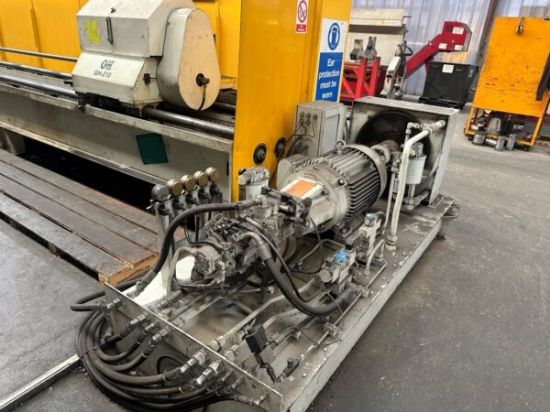

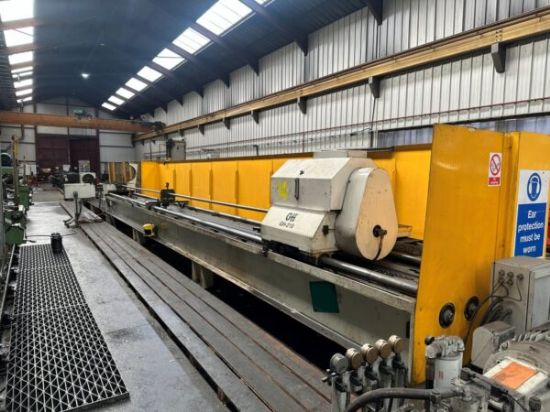

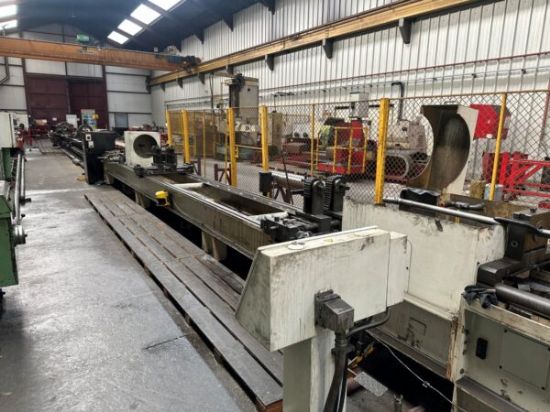

Photo 1

Photo 2

Photo 3

Photo 4

Sunnen GH210 x 10000mm Horizontal Hone
10,000mm Stroke,
Spindle Speed:0 – 300 rpm
Maximum Spindle Power: 40 Hp (29.83 kW)
Maximum Stroker Power: 18 Hp (13.42 kW)
Stroke Speed Range: 0 – 100 ft/min (0 – 30.5 m/min)
I.D. Range: 2 – 24 inches (50.8 – 609.6 mm)
O.D. Range: 26 inches standard (660.4 mm)
Maximum Part Weight: 8000 kg
Approximate Machine Weight: 12,066 kg
400 VAC 50 Hz, 3-Phase (85 A)
Siemens Simatic Control,

Category: Honing

Seller's location: Nottinghamshire, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 17 Sep 2025
