XYZ 2-OP

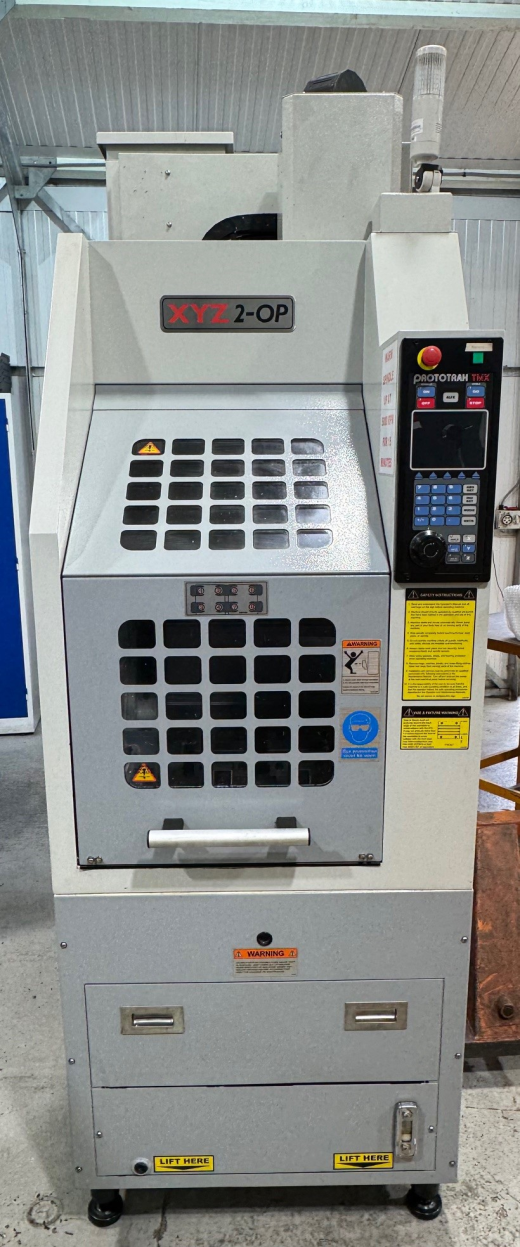

Photo 1

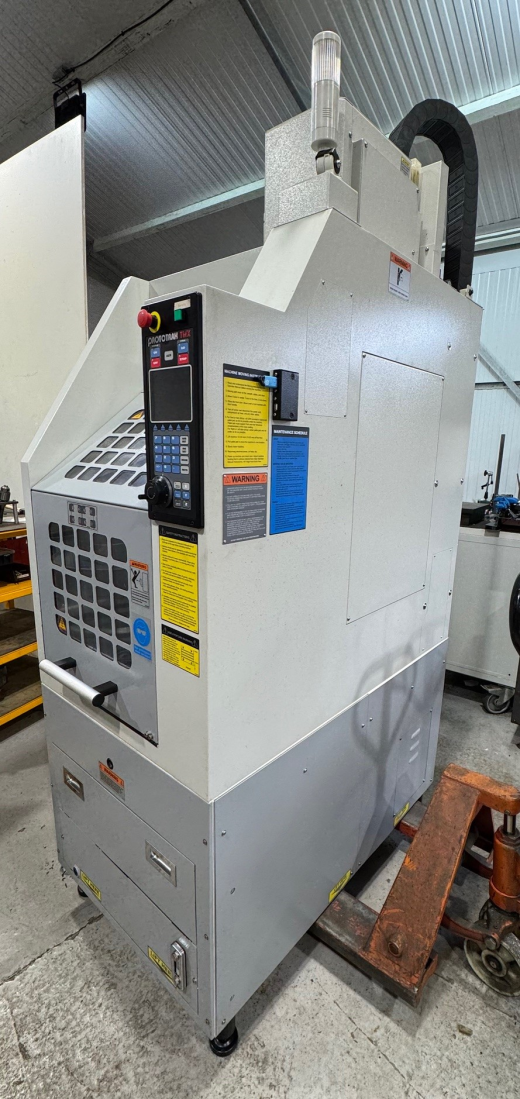

Photo 2

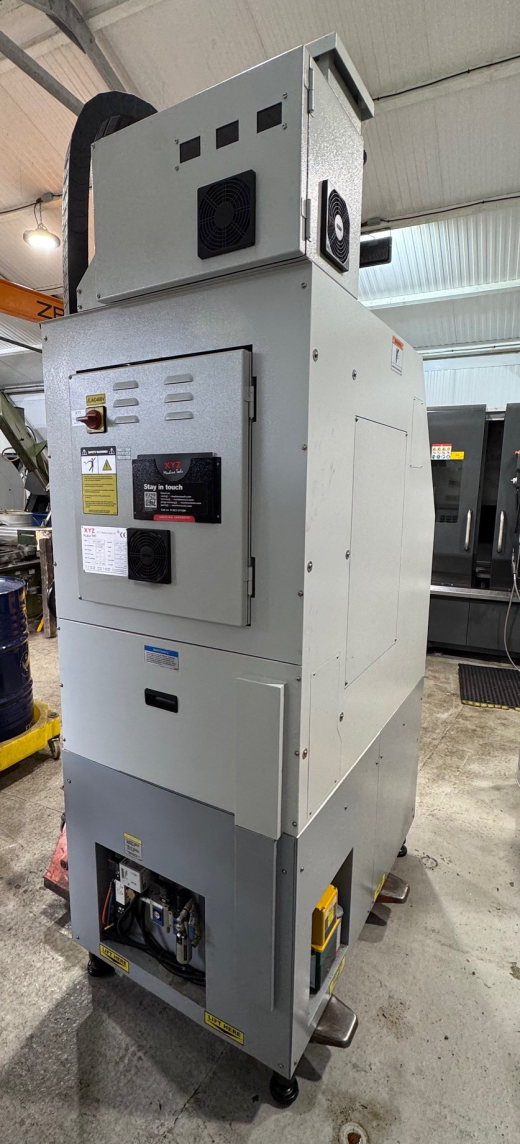

Photo 3

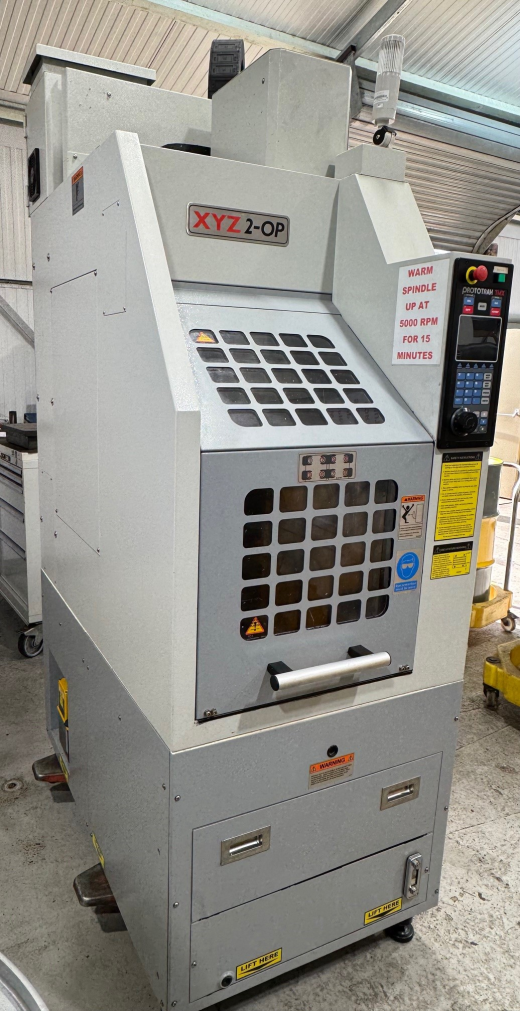

Photo 4

XYZ Machine Tools XYZ 2-OP (2020 Model)

Upgrade your workshop with this reliable and high-performance CNC machine from XYZ Machine Tools Ltd, a trusted name in precision engineering.

Machine Specifications:
Feature Spec / Capability
Travel (X × Y × Z) ~ 355 mm × 305 mm × 455 mm
Table size ~ 457 mm × 381 mm
Max work load ~ 250 kg
Spindle BT30 taper, 10,000 rpm, ~ 3 hp (˜ 2.2–2.3 kW) motor
Tool changer 8-station automatic tool changer
Rapid traverse ~ 15 m/min (X/Y/Z)
Control ProtoTRAK TMX conversational CNC (menu-driven, with G-code compatibility), USB file transfer
Accuracy / repeatability Positioning accuracy typically around ±0.005 mm (varies with condition), repeatability ±0.003 mm
Footprint ~ 760 × 1,220 mm, ~ 2.5 m tall
Machine weight ~ 1,100 kg

• Year of Manufacture: 2020
• Rated Voltage: 400V
• Full Load Current: 15A
• Short Circuit Rating: 10kA
• Phase: 3
• Cycle: 50Hz
• Main Motor Power: 2.2 kW
• Max Spindle Speed: 10,000 RPM
• Pneumatics: 6 bar / 100 L/min
• CE Certified

________________________________________


Practical machining use
• High-speed drilling, tapping, and small-tool milling: The 10k rpm spindle makes it much better for smaller cutters (Ø3–10 mm) and aluminium machining compared to the older 6k rpm version.
• Secondary ops & light milling: Great for “clean-up” cuts, bolt holes, chamfers, flat milling, and side ops after turning.
• Batch work with multiple ops: The 8-station tool changer is limiting, but with smart tooling (spot, drill, tap, end mill, chamfer, face) you can cover a lot.
• Compact footprint: It can be placed near lathes or VMCs to absorb “2-op” bottlenecks.


Condition:

• Excellent working order
• Lightly used, well-maintained. Has only been used to make Aluminium and Nylon shop fittings.
• Ready to go straight into production


Why Choose the XYZ 2-OP?

• Precision engineering and durability
• High spindle speed and robust motor for versatile machining
• Compact and efficient design
• Backed by XYZ’s reputation for service and reliability

https://www.youtube.com/watch?v=t1-Vtb05vhI

?? Located in Canterbury, Kent
?? Price: £24995.00 + VAT
?? Contact: 01227 832000 / sales@showan.com

Don’t miss this opportunity to own a top-quality XYZ 2-OP machine—perfect for workshops, tool rooms, and production facilities looking to boost their machining capabilities.


Category: Machining centres

Seller's location: Kent, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 22 Sep 2025
