Used Charmilles Eleroda 110 Spark Eroder (4854)

Photo 1

Photo 2

Photo 3

Photo 4

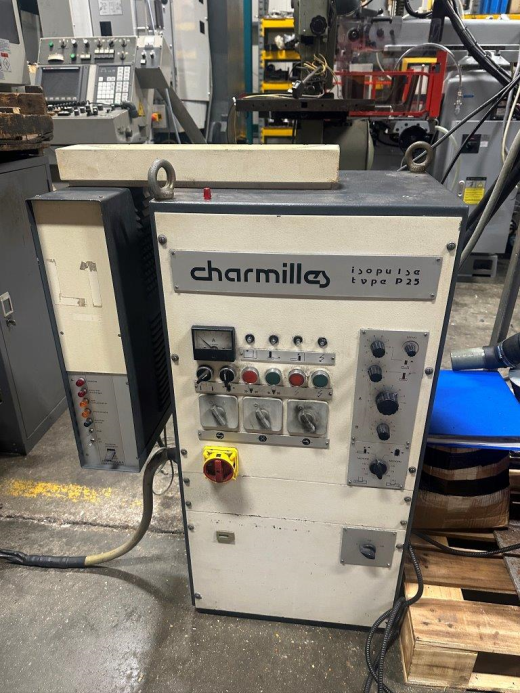

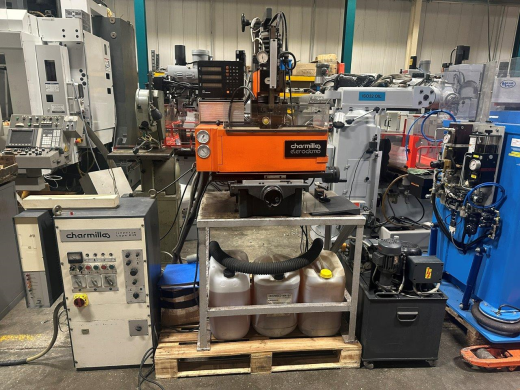

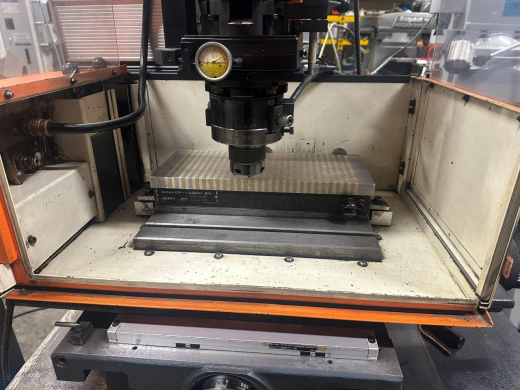

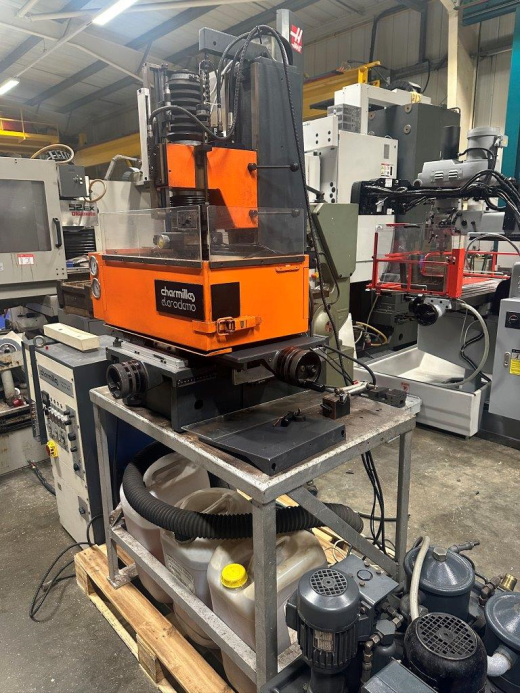

Used Charmilles Eleroda 110 Spark Eroder, s/n TBA , Table dimensions 350 x 230mm, Travels X-200 x Y-120 x Z-240mm, Quill travel 100mm, Distance from head to table 110 to 450mm, Tank size (inside) 520 x 350 x 180mm high (dielectric level), Generator P25A, 25 amp, Intensity levels 1/32, 1/16, 1/8, 1/4, 1/2 , 1. Power input (for generator) 2.1kVA, Floor space 1,500 x 800mm Power input (without Generator) 1kVA, Supply voltage 380V, 3 phase, 50Hz, c/w Magnetic chuck, DRO

Category: EDM - Spark Erosion

Seller's location: West Sussex, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 6 Oct 2025
