CORREA FP50/80 - 892214 CNC Milling machine - Bridge type

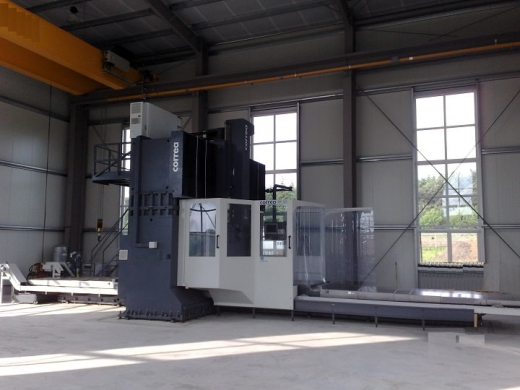

Photo 1

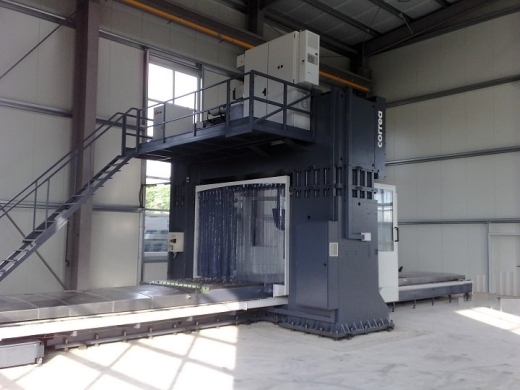

Photo 2

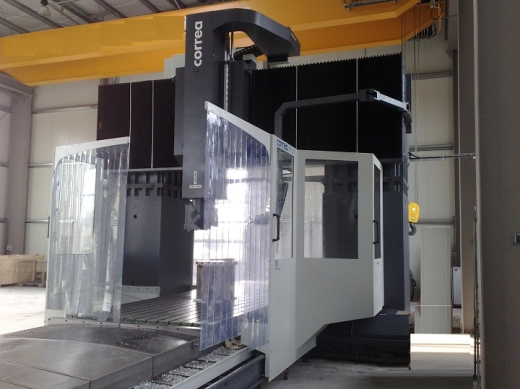

Photo 3

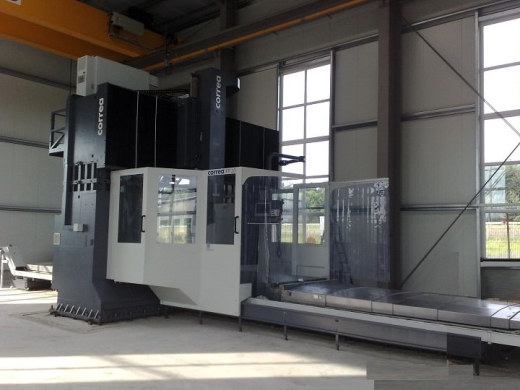

Photo 4

Control: HEIDENHAIN TNC-i530
Year: 2010

• Table dimensions: 8500 x 2500 mm
• Maximum weight on table: 35000 kg
• Number of T slots: 17
• T slots dimensions: 22 mm

• X axis traverse: 8000 mm
• Y axis traverse: 3800 mm
• Z axis traverse: 1500 mm
• Vertical capacity (VC): 168 / 1168 mm
• Distance between columns: 3100 mm

• Auto-indexing differential head (UAD - 0,02º)
• Tool clamping system: Hydraulic
• Taper nose: ISO50 (DIN69871) / Pull stud: DIN69872
• Speed range: 6000 rpm
• Spindle power: 30 kW

• Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min

• Machine weight approximate: 79000 Kg
• Machine dimensions approximate: 22700 x 7660 x 6800 mm

• Guarding: 2 sliding doors with a new perimetral wire-mesh safety fence
• Automatic tool changer: ATC-60
• Chip conveyor: 2longitudinal hinge type
• Electronic handwheel: New HR-510
• Coolant: External & internal high pressure through spindle
