ARKU RM 5035.4/21 Coil Processing Line 2000

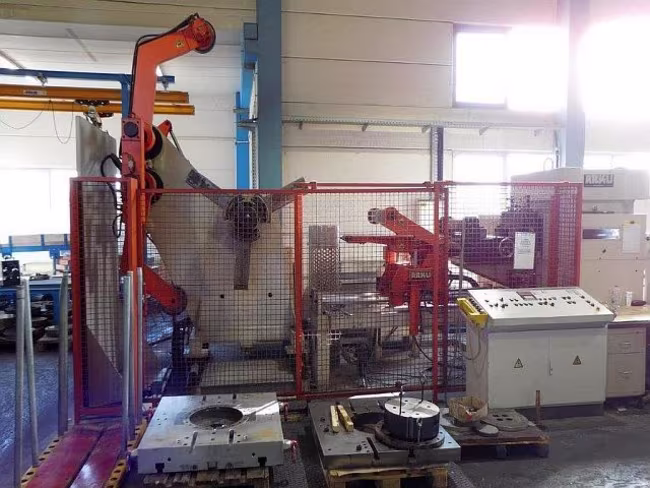

Photo 1

Photo 2

Photo 3

Photo 4

Internal Reference Number: 42744 Machine Description: Coil Processing Line (used) Manufacturer: ARKU Model: RM 5035.4/21 Year of Manufacture: approx. 1989 Overhauled: 2006 Control System: Siemens S5-115U PLC Line Data (Coil Processing): • Max. sheet width: 350 mm • Max. sheet thickness: 8 mm • Max. coil weight: 4 t • Max. working speed: 10 m/min • Material feed direction: left–right Coil Uncoiler Unit: • Type: Single uncoiler • Max. sheet width: 350 mm • Max. coil weight: 4 t • Max. outside coil diameter: 1500 mm • Expansion range: 370–530 mm • Max. working speed: 10 m/min Straightening Unit: • Max. sheet width: 350 mm • Max. sheet thickness: 8 mm • Number of straightening rollers: 21 • Straightening roller diameter: 50 mm • Number of entry/exit rollers: 2 • Entry roller diameter: 120 mm • Max. working speed: 10 m/min Electrical Specifications: • Total power consumption: 38 kW • Voltage: 380 V • Frequency: 50 Hz Dimensions / Weight: • Approx. total weight: 13,000 kg Included Equipment: • ARKU AH4000/MSG-4Q single uncoiler with hydraulic expansion Hydraulic front coil stop roller Hydraulic upper and lower pressure arms • ARKU sheet introduction aid Hydraulic top roller Adjustable bottom table (hydraulic) Manual adjustable wedge guide • ARKU precision straightening machine RM 5035.4/21 Drive for all straightening and feed rollers Hydraulic feed roller adjustment Motorized roll stand adjustment • ARKU loop bridge with ultrasonic loop control Remarks: All technical data provided to the best of knowledge and without guarantee. Inspection is recommended to verify all specifications.

Category: Public Auction

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Oct 2025
