KOHLER 50.140/21-3000.1VSRM + HK Coil Feed Line / Strip Processing Line 1999

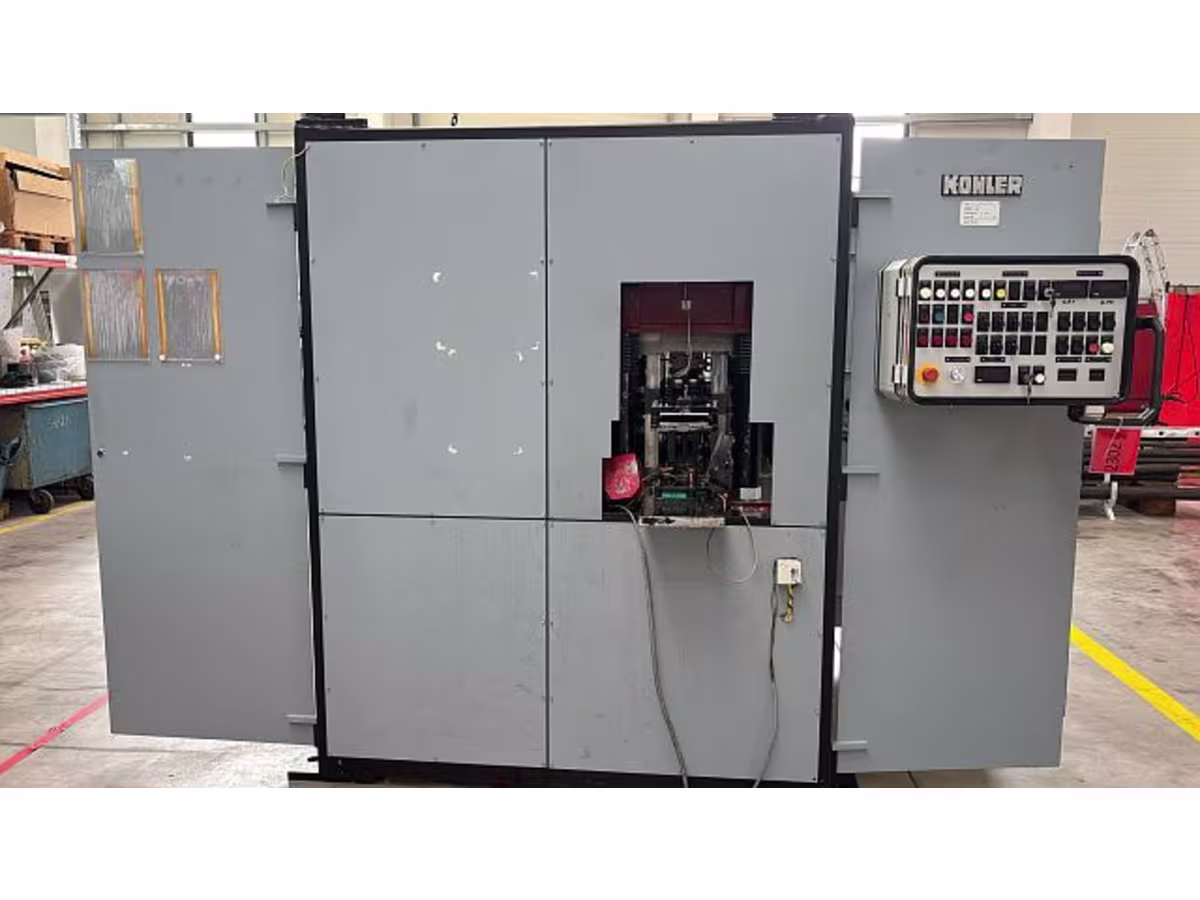

Photo 1

Photo 2

Photo 3

Photo 4

Internal Reference Number: 46805 Machine Description: Coil Feed Line / Strip Processing Line (used) Manufacturer: KOHLER Model: 50.140/21-3000.1VSRM Serial Number: 60111 Year of Manufacture: approx. 1999 Control System: PLC control Siemens S5-115U Country of Manufacture: Germany Line Data (Strip Line): • Max. strip width: 140 mm • Max. strip thickness: 6 mm • Max. coil weight: 3 t Coil Loading Car: • Max. coil weight: 3 t • Lift: 500 mm Uncoiler: • Type: Single mandrel • Max. strip width: 300 mm • Max. coil weight: 3 t • Max. outside coil diameter: 1300 mm • Expansion range: 360–430 mm Straightening Unit (VSRM 50.140/21): • Max. strip width: 140 mm • Strip thickness: 3–6 mm • Number of straightening rolls: 21 • Roll diameter: 50 mm • Max. line speed: 43 m/min Electrical Specifications: • Total connected load: 35 kW Included Equipment: • Coil loading car CS3000 • Uncoiler 300.1 H • Straightening unit VSRM 50.140/21 • Edgewise straightening unit HK 140 Remarks: All technical data provided to the best of knowledge and without guarantee. Inspection is recommended to verify all specifications.

Category: Public Auction

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Oct 2025
