PADOVANI LABOR E300 Cycle Lathe 1997

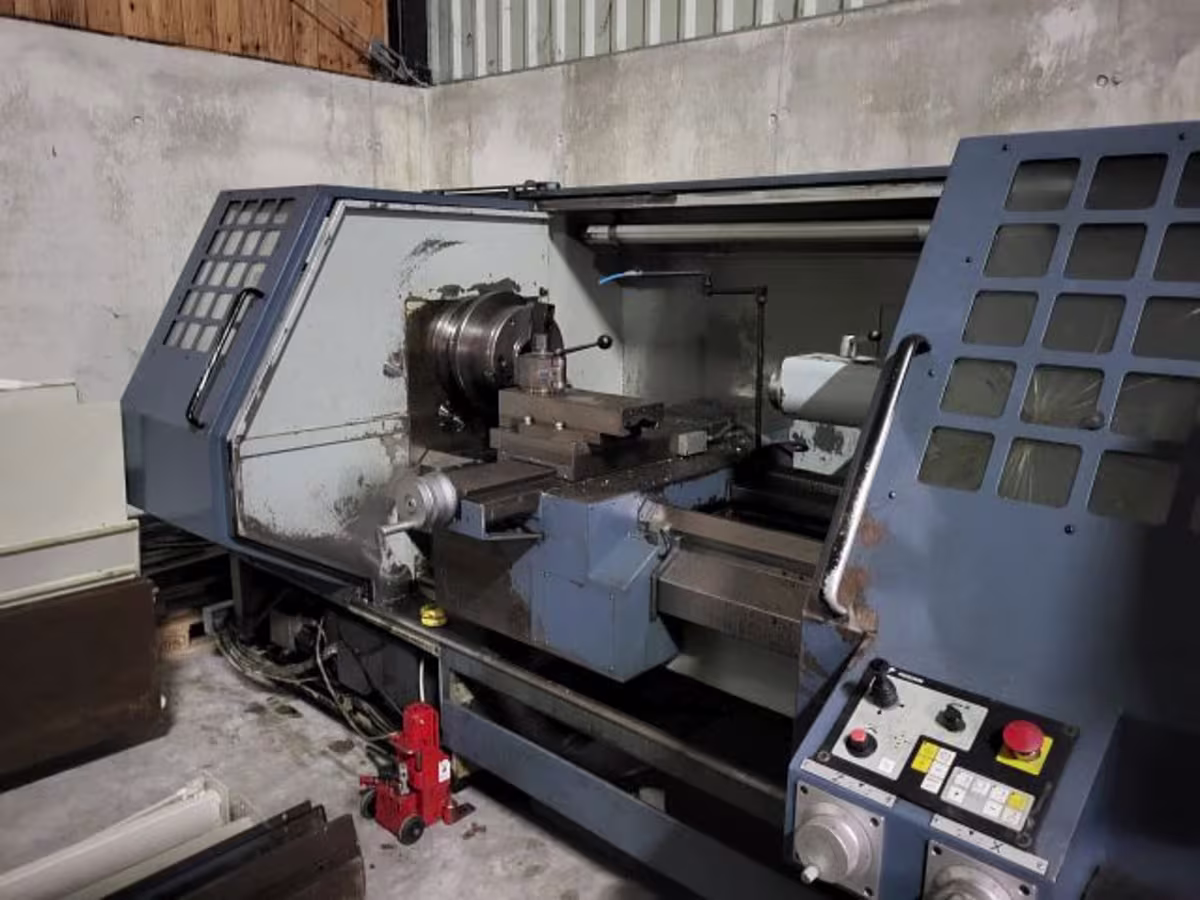

Photo 1

Photo 2

Photo 3

Photo 4

Internal Reference Number: 43098 Machine Description: Cycle Lathe (used) Manufacturer: PADOVANI Model: LABOR E300 Year of Manufacture: approx. 1997 Control System: Siemens Cycle Control Construction: • Type: Flat-bed lathe • Number of spindles: 1 Working Range (Turning): • Max. swing diameter: 720 mm • Max. turning diameter: 380 mm • Max. bar capacity: 108 mm • Max. workpiece length: 1500 mm Main Spindle: • Speed range: 0 – 1200 rpm • Number of gearbox stages: 3 • Spindle bore: 108 mm Cross Slide: • Feed rate Z-axis: up to 5000 mm/min • Feed rate X-axis: up to 5000 mm/min • Rapid traverse Z-axis: 5000 mm/min • Rapid traverse X-axis: 5000 mm/min • Tool holder type: Turning tool holder Tailstock: • Distance between centres: 1500 mm • Quill stroke: 200 mm • Quill diameter: 120 mm • Quill taper: MK 6 Electrical Specifications: • Voltage: 400 V • Frequency: 50 Hz Dimensions / Weight: • Width (left–right): 4050 mm • Depth (front–back): 1730 mm • Height: 2050 mm • Approx. total weight: 5500 kg Included Equipment: • 3-jaw chuck Ø 315 mm • 1 steady rest • Tailstock Remarks: All technical data provided to the best of knowledge and without guarantee. Inspection recommended to verify specifications.

Category: Public Auction

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 21 Oct 2025
