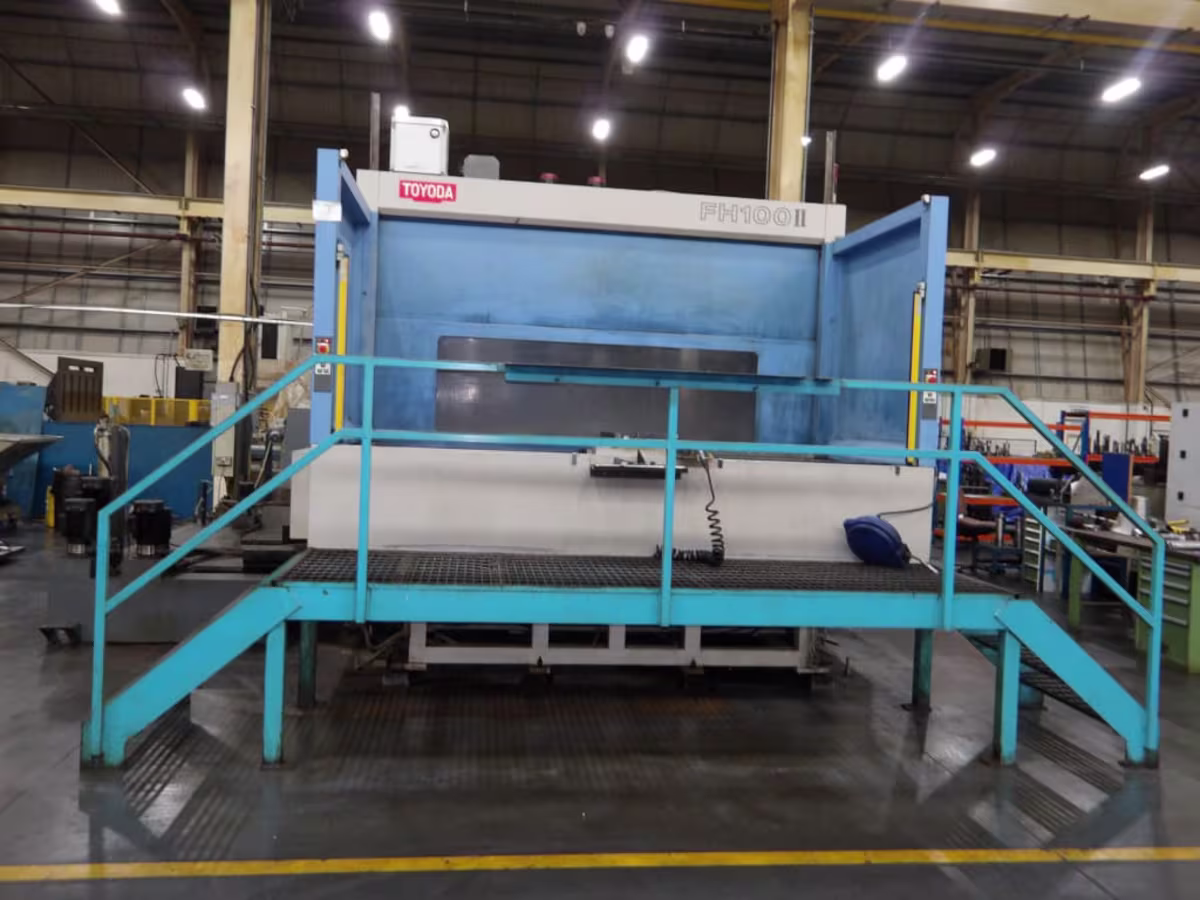

Toyoda 'FH100 II' Twin Pallet Horizontal Machining Centre with Fanuc 16i-M CNC Control (2001)

Photo 1

Photo 2

Photo 3

Photo 4

X' Axis Approx 1,600mm, 'Y' Axis Approx 1,400mm, 'Z' Axis 1,100mm; Feed (X) Approx 950mm; (2) Pallets, 1050mm x 1050mm, Max Load 3,000kg; (120) Station ATC; Minimum Index angle 1°; Distance from Table Surface to Spindle Centre Approx 50mm-1,450mm; Distance from Table Centre to Spindle Nose 20mm-1,400mm; Geared Headstock; Max Tool Dia (Adjacent Pockets) 120mm; Max Tool Length 600mm, Max weight per Tool 35kg; Spindle Taper BT50; Spindle Speeds 10-6,000 RPM; S/No. 9224.

Category: Public Auction

Seller's location: Sussex, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 4 Nov 2025
