Technidrill 'GD-100-5-160 BTA-Ejector-Gundrill' Deep Hole Drilling Machine with Heidenhain 320 CNC Control (2013)

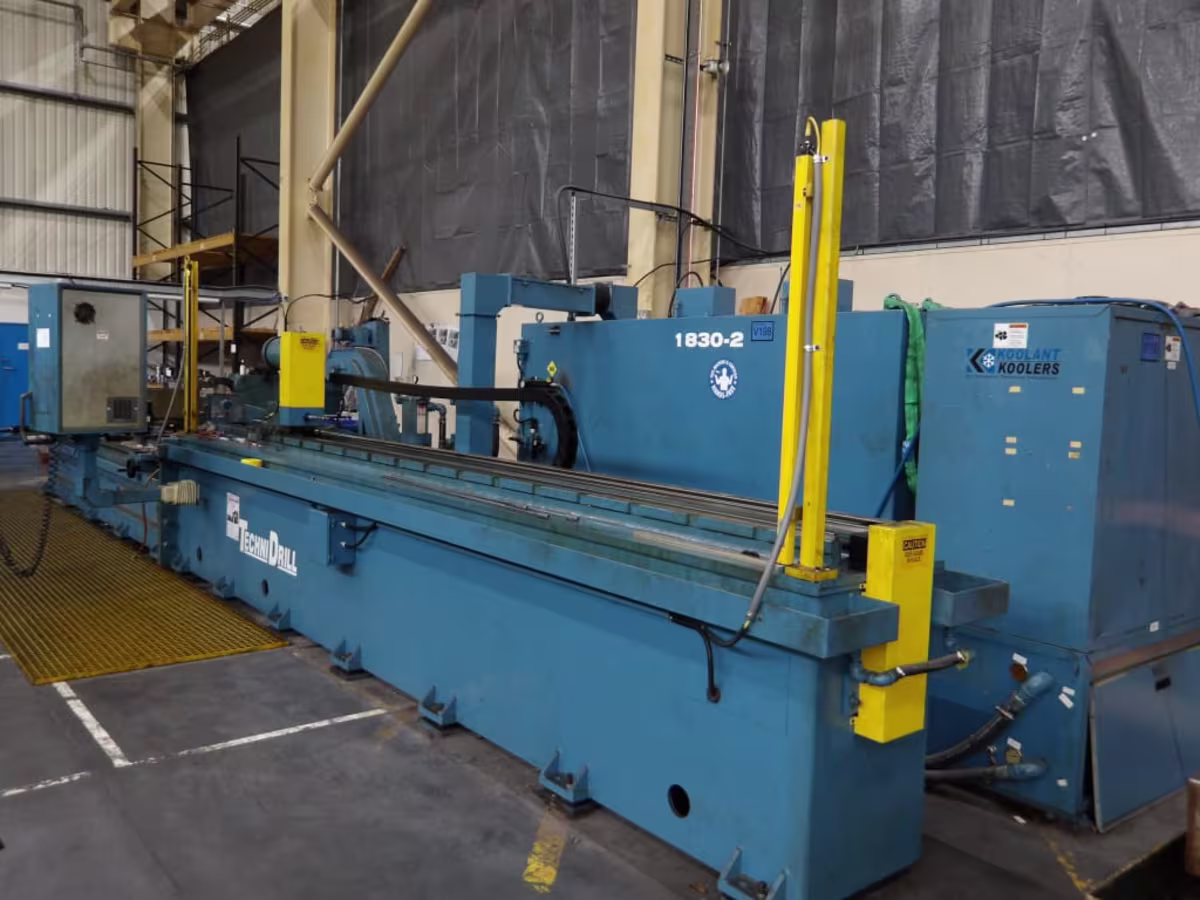

Photo 1

Photo 2

Photo 3

Photo 4

4mm Dia. - 12mm Dia Range of Drilling; Up to 3,000mm Length of Component; Double Axis; Overall Length Approx 11 Metres x 900mm Wide, (2) Sections - Headstock Bed Length Approx 5 Metres, Drilling Length Bed Approx 6 Metres; (1) 500mm Dia 4-Jaw Chuck, 120mm Bore with Troyke DL-20-B, 4th Axis, 500mm Dia. Precision Rotary Table; Pendant Control; Stand Alone Electrical Cabinet (Dimensions Approx 3,000mm x 500mm x 1,900mm High); Technidrill Coolant Filtration System consisting of LNS 'Turbo HB' Swarf Conveyor, FSI 'CBFP 11' Filter System & Oil Tank with High Pressure Delivery Pumps; Stand Alone Dimplex Koolant Koolers Chiller Unit with Controls (Dimensions Approx 700mm x 1,300mm x 1,850mm High, 2012); S/No. 7351-03/13.

Category: Public Auction

Seller's location: Sussex, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 4 Nov 2025
