2022 Ibarmia ZVH60/L6000 Multi-process Machining Centre

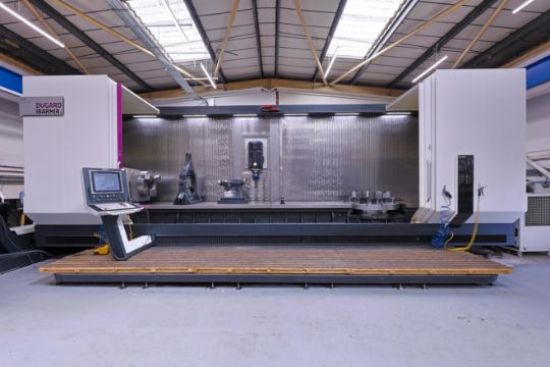

Photo 1

Photo 2

Photo 3

Photo 4

The 2022 Ibarmia ZVH60/L6000 is a versatile multi-process machining centre designed for precision milling and turning operations. Equipped with a Heidenhain TNC640i HSCI control system and HR-520 portable hand-wheel, it offers exceptional control and accuracy, further enhanced by Heidenhain Kinematics Opt calibration of rotating axes. This machine features a powerful CAPTO CS main spindle with through-spindle coolant at 70 bar, a generous 80-position tool magazine, and support for BT50/CAPTO tooling. Its horizontal rotary table and turning spindle head deliver up to 78 kW and 1400 Nm, with a 500 mm centre height, while the off-centred Y-axis rotary table allows increased swing for 5-axis operations up to Ø1200 mm. Additional highlights include an automatic self-centring 3-jaw chuck (Ø630 mm), 110 mm bar capacity, hydraulic extension for automated operation, manual tailstock, and sub-plate for tailstock. Precision is assured with RENISHAW RMP600 and TS27R touch probes, while gear hobbing, gear skiving, and grinding with HSKA100 are also supported.For ease of use and maintenance, the machine comes with air and spray guns, mist filtration, a tipping swarf bin, steady rest support, dressing unit, operator platform, and safety door modifications—making it a complete solution for demanding machining tasks. Full Tec spec available upon request. This lot is Buyer to Remove. Please note that a Risk Assessment and Method Statement together with evidence of Employer and Public Liability Insurance will be required for approval by the auctioneer a minimum of 48hrs prior to removal. Please note this machine is located in Worthing UK.

Category: Public Auction

Seller's location: Leeds, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 18 Nov 2025
