2014 CITIZEN M32-4M8

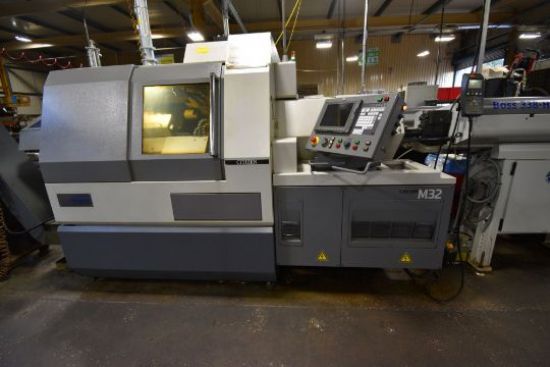

Photo 1

Photo 2

Photo 3

Photo 4

2014 CITIZEN M32-4M8 SLIDING HEAD CNC MACHINE & IEMCA BOSS 338 HD Superfast automatic bar feeder. Key Specifications: the M32 family is a sliding‐headstock type CNC automatic lathe. The “4M8” suffix refers to a particular variant in the M32 range — often indicated as M32-4M8. For M32-4M8, typical technical data: Number of axes: 10 + C1/C2. Max machining diameter: Ø 32 mm (with Ø 35 mm option) for standard spec. Maximum machining length (headstock stroke): 320 mm. Main spindle speed: up to 8,000 rpm. Back spindle speed (approx): also up to 8,000 rpm. Motor drive for main spindle: up to 7.5 kW. Machine dimensions: for M32 type approx W2,860 × D1,465 × H1,900 mm; weight approx 4,250 – 4,300 kg for certain variants. Features & Capability Highlights :- Very capable for small‐diameter, complex parts: sliding headstock (bar feed style) gives ability to machine long workpieces efficiently. The M32-4M8 variant (and other M32 variants) include very robust tooling arrangements: gang tool post, turret tool post, driven tools, back tool post, Y-axis and in some variants B‐axis for contouring machining. The machine supports both guide-bush and non‐guide-bush modes (depending on bar diameter/option) which broadens its capability for different workpiece types. Good for “lights‐out” production scenarios: multiple tools in cut simultaneously, high rigidity, chip control features. Please note there is a £1400 Plus VAT Lift Out Fee on this lot. Please note this machine is located in Liverpool ,UK.

Category: Public Auction

Seller's location: Leeds, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 18 Nov 2025
