2011 Mori Seiki NZ2000T2Y MULTI-AXIS CNC Lathe Turn-Mill Center

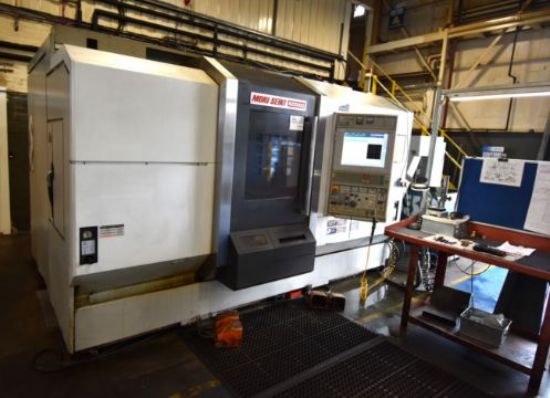

Photo 1

Photo 2

Photo 3

Photo 4

2011 Mori Seiki NZ2000T2Y MULTI-AXIS CNC Lathe Turn-Mill Center with a focus on high-speed, high-precision machining. It features twin turrets with 16 tool stations each, capable of both turning and milling operations. The machine is equipped with a main spindle and a sub-spindle, both capable of high speeds and power. Control: FANUC MSX-701 III (MAPS III)Working area:Swing over bed: 800 mmSwing over cross slide: 800 mmMax. turning diameter: 320 mmStandard turning diameter: 200 mmMax. distance between centers: 1,130 mmMax. turning length: 810 mmMax. workpiece size: 300 mmTravel pathsX-axis travel:Turret 1: 210 mmTurret 2: 210 mmY-axis travel:Turret 1: 110 mm (+65 / -45 mm)Z-axis travel:Turret 1: 810 mmTurret 2: 810 mmB-axis travel:Counter spindle: 920 mmMain spindleMax. speed: 5000 rpmDrive power (30 min / continuous operation): 25 / 22 kWCounter spindleMax. speed: 5000 rpmDrive power (30 min / continuous operation): 25 / 22 kWMax. bar diameter: 65 mmSpindle bore: 73 mmEquipped with:- Two direct-drive AC high-performance spindles with a drive power (30 min / continuous operation): 25 / 22 kW- Spindle orientation without locking- C-axis locking via holding brake for the main and counter spindles- Two turrets, each with 16 tool stations, Y-axis on the first turret- All tool stations prepared for the use of driven tool holders, integrated motor with a drive power of 7.5 / 5.5 kW, max. speed 6,000 rpmThe machine weighs approximately 9.4 tons and has dimensions of about 4.0 x 2.8 x 2.4 meters. Please note there is a £1400 Plus VAT Lift Out Fee on this lot. Please note this machine is located in Liverpool ,UK.

Category: Public Auction

Seller's location: Leeds, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 18 Nov 2025
