PARPAS type ML 120 - 8 axis : 12000 x 3500 x 1250 mm CNC

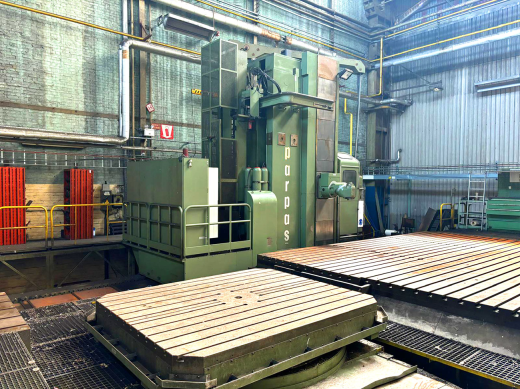

Photo 1

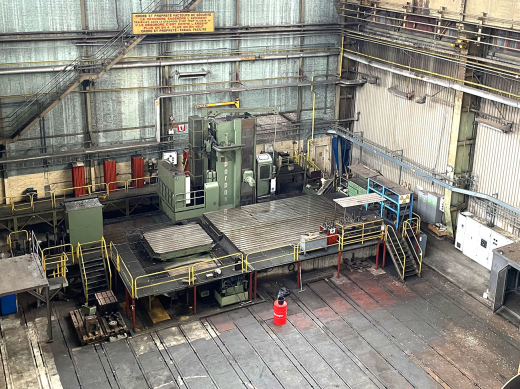

Photo 2

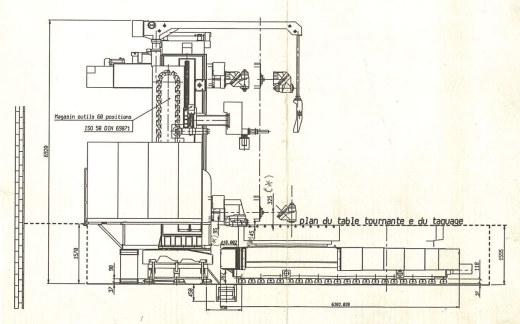

Photo 3

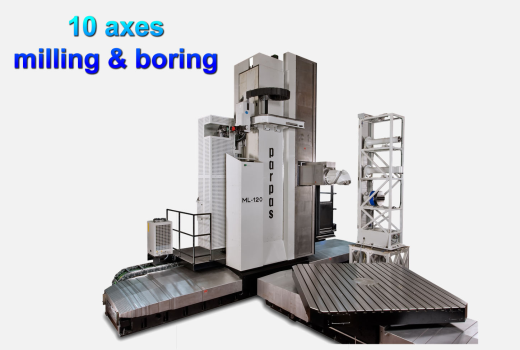

Photo 4

Type: ML120-12000
6 axes simultaneously (X / Y / Z / W / B / V) + 2 axes indexing milling head (2.5°)
8 axes simultaneously (X / Y / Z / W / B / V) + continuous orthogonal milling head (A: +-120° / C: +-180°)
Heavy duty CNC milling & boring machine / CNC floor type borer & floor type milling
ram size: 630 x 500 mm - ram travel: 1250 mm
spindle dia 130 mm - travel: 650 mm - without milling head you can use as borer
CNC continuous orthogonal milling head (A: +-120° / C: +-180°)
CNC indexing milling head (2.5°)
toolchanger for automatic changing two milling heads
cooling through spindle
tool changer with 60 positions
chip conveyor
Siemens drives & motors
Heidenhain control & measuring rulers
weight of machine: 60 tons
dimensions of machine: 19 meters x 12 meters x 6.65 meters

TIRT3025 CNC turntable continuous:
- max 60 ton workpiece weight
- hydrostatic table
- dimensions: 3000 x 2500 mm
- travel or turntable: 2500 mm
- max 2 rpm
- weight of table: 37 tons
- dimensions: 6500 x 2500 x 1500 mm

3 T-slot tables
- 7600 x 2800 mm
- 7600 x 2480 mm
- 4300 x 1800 mm
- weight of tables: 50 tons

Category: Machining centres

Seller's location: belgium
