Fanuc type R-2000 milling robot 10500 x3045 x3500 mm CNC

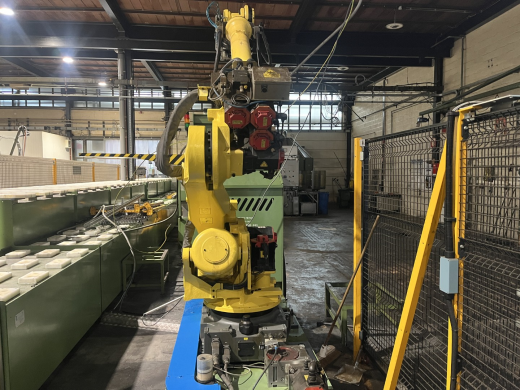

Photo 1

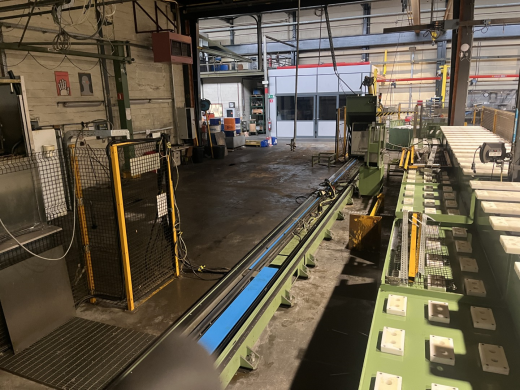

Photo 2

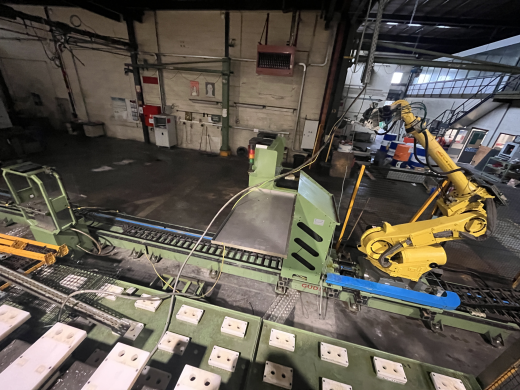

Photo 3

Photo 4

Fanuc 6-axis robotic milling center for aluminum and steel
Fanuc R-2000-B/165F
CNC: R-30iA CONTROLLER
X-movement of the robot on track: 10,500 mm
Extended robot arm reach (left and right): 3045 mm
> maximum workpiece length if it is a profile: 15 meters
> max. workpiece size without extended arm reach: 10,500 x 3045 mm
> max. workpiece height: 3500 mm
> max weight which can be attached to the robot: 165 kg
> weight of only the robot: 1200 kg


Toolchanger mounted on the track with 13 tool positions:
- 12 live tools - ISO BT 40
- 1 measuring probe


Milling head:
TMA6 17/2
Speed: 1 > 12,000 rpm
ISO 40 - 11 kW
Weight: 45 kg


Category: Machining centres

Seller's location: belgium
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 16 Apr 2026
