Hardinge HLV-H High Speed Super Precision Tool Room Lathe

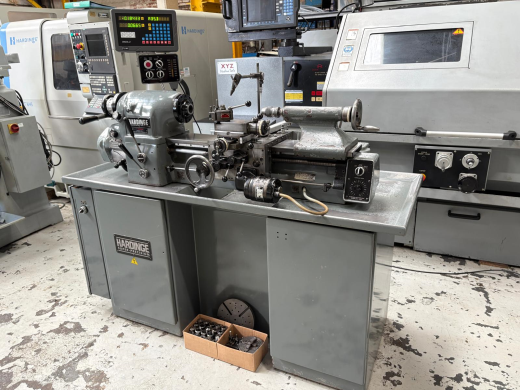

Photo 1

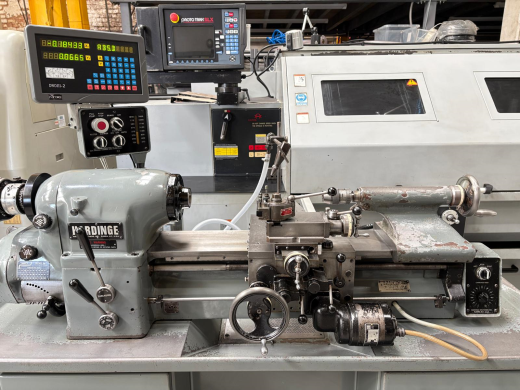

Photo 2

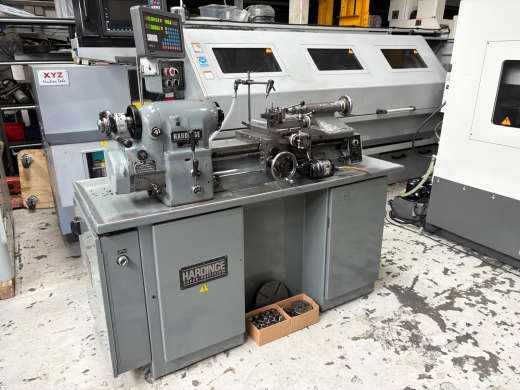

Photo 3

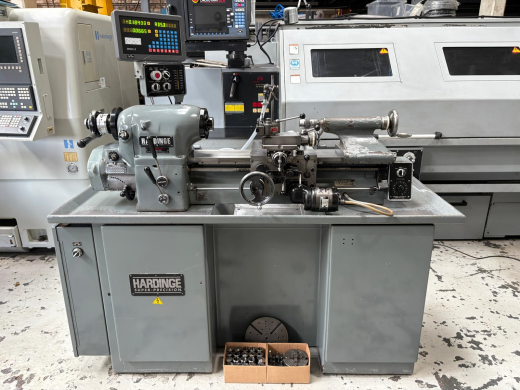

Photo 4

Max’ Distance Between Centres 18”
Max’ Swing over Bed 11”
Max’ Swing Over Carriage 9”
Max’ Swing over Cross Slide 6”
Spindle Capacity:
Though Spindle - 1 1/4”
5C Round Collets - 1 1/16”
5C Hex Collets - 7/8
5C Square Collets - 3/4”
With Step Chucks – 1 1/16” to 6”
With Jaw Chuck (Through Spindle) - 1 5/32”
With Expanding Collets 3”
Variable Spindle Speeds - 125 to 3000 rev/min
Tailstock M/T 2
3 Phase Electrics
Net Weight (approx.) 750Kgs

Supplied with:

2 Axis Digital Readout
4 Jaw Chuck
Faceplate
3 off Multifix Tool Holders
Set of Misc’ 5C Collets

For Sale Jet Machinery Ltd
Jet Machinery Stock No: #79017
Machine Serial Number: HLV-H14793T
Cost: £8950.00 + VAT

Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details.

Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.



Category: Lathes - general

Seller's location: West Midlands, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 5 May 2026
