Demoor Hollow Spindle CNC Lathe 825-360

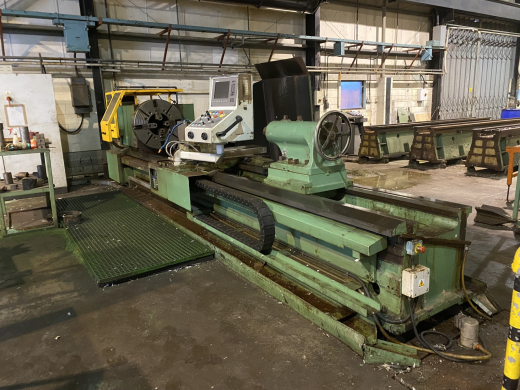

Photo 1

Photo 2

Photo 3

Photo 4

Machine will be fully run and checked complete with totally overhauled control system

Key Specifications:
• 14 1/4” Hollow Spindle
• 39” Swing Over Bed
• 26” Swing Over Saddle
• 13.1 ft Maximum Turning Length Between Centres

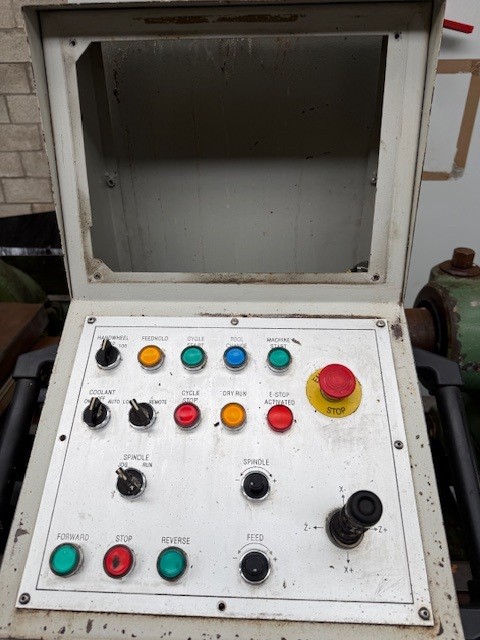

Control System:
• Heidenhain Manual Plus 4110
• Conversational programming capability
• Compatible with ISO programs

Machine Setup:

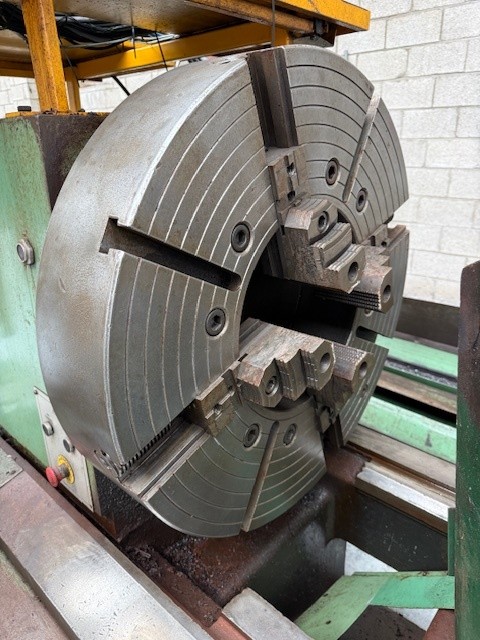

• 32” 4-jaw hollow bore manual chuck (front)
• 32” 3-jaw hollow bore manual chuck (rear)

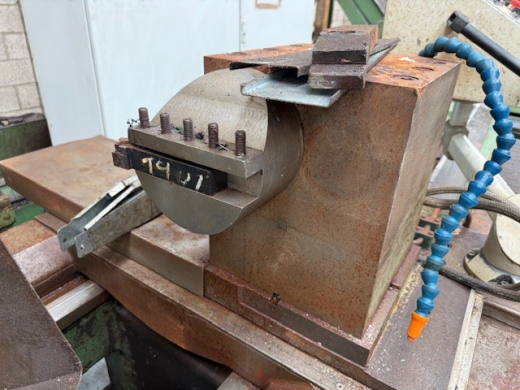

• Turret accommodates KM interchangeable tooling and conventional tooling
• It will take up to 100 mm dia internal boring bars

Additional Information:
• Fully rebuilt and retrofitted in 2006
• Previously used in the manufacture of downhole oilfield equipment
• Capable of cutting oilfield threads from 4 1/2” to 13 3/8” diameter
• Large 14” hollow spindle complete with front and rear hollow bore chucks, allows machining of drill pipe and other related oilfield components

Category: Lathes - CNC

Seller's location: Lincolnshire, UK
