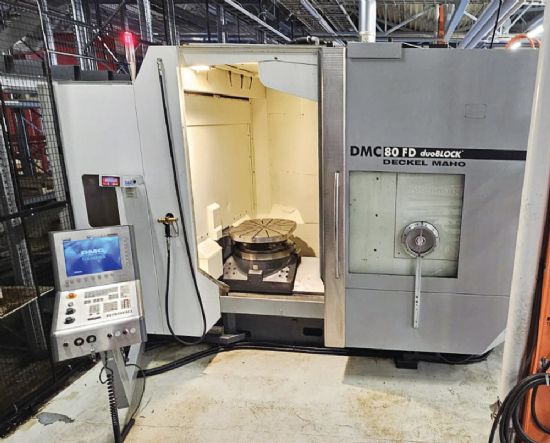

2009 DMG DMC 80 FD 5-Axis Universal Machining Centre

Photo 1

Photo 2

Photo 3

Photo 4

Siemens 840 D Powerline,
travels X/Y/Z 800/800/800mm,
C-axis 0.001º,
B-axis 0º-190º,
rapids 60m/min,
spindle speeds ~10,000rpm,
spindle power 44/32kW,
spindle torque 288/187Nm,
milling/turning table NC,
number of pallets 2,
pallet dimensions 800 x 630mm,
max workpiece weight 1,000kg,
table rotation speed 800rpm,
max torque 980Nm,
HSK-A 100,
180 ATC,
40 bar through-spindle coolant,
tank capacity 980 l,
electronic handwheel,
swarf conveyor,
infrared probe

Category: Machining centres

Seller's location: Surrey, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 7 Jul 2026
