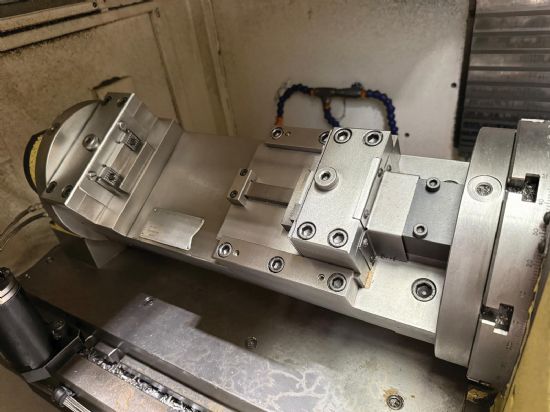

MAZAK VCN-500 Vertical Machining Centre with NIKKEN 4th Axis Trunnion and RoboJob MA-PAL Robot. Year 2024

Photo 1

Photo 2

Photo 3

Photo 4

Table size 1,050 x 500mm.
X/Y/Z travels 800/500/550mm.
Max spindle speeds 15,000rpm.
Rapids X/Y/Z 42m/min.
Distance from spindle nose to table min/max 150/700mm.
Max loading on table 750kg.
Spindle taper CAT40.
Spindle motor (cont. rating) 11kW.
30 ATC.

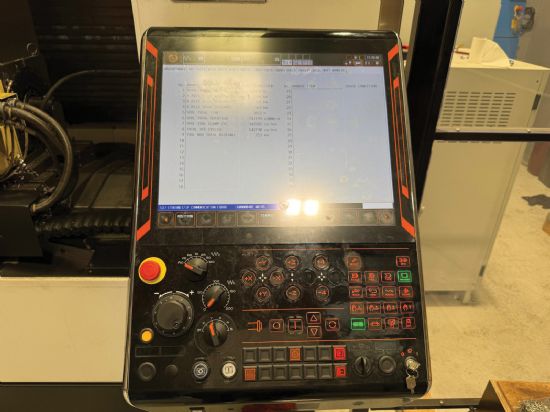

Mazatrol Smooth G Control.

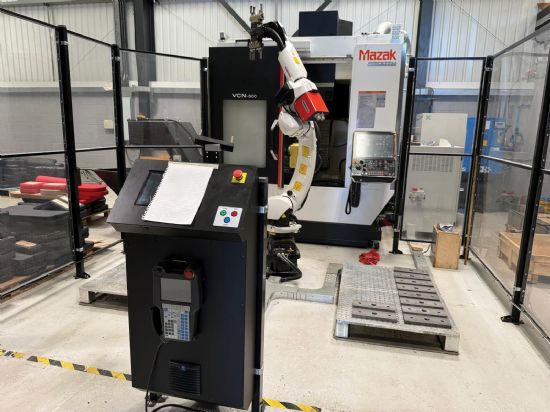

RoboJob MA-PAL Robot with Controller & Accessories.
Loading & Unloading Pallets.
Swarf Conveyor & Swarf Bin.
ExoMist Mist Extractor.
Renishaw Tool Setter.
Renishaw Probe.
Renishaw Receiving Unit.
Peripheral Safety Guarding.
Selection of Spindle Tooling.
Set of Manuals.
Machine dimensions L x W x H 3,329 x 2,330 x 2,900mm.
Approximate weight 5,700kg

Category: Machining centres

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 18 Aug 2026
