MAZAK VCN-530C Vertical Machining Centre with NIKKEN 4th Axis Trunnion and RoboJob MA-PAL Robot. Year 2020

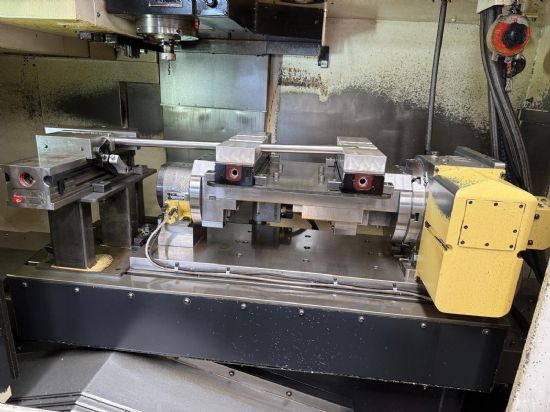

Photo 1

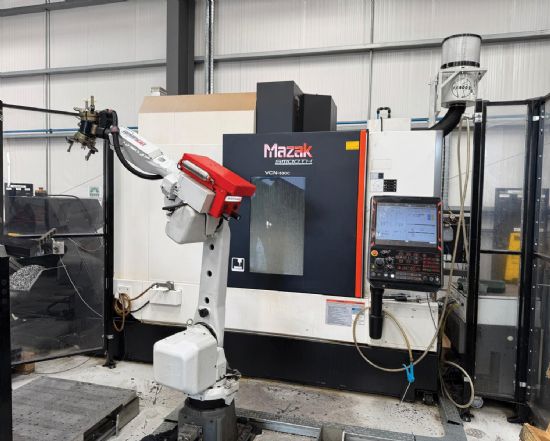

Photo 2

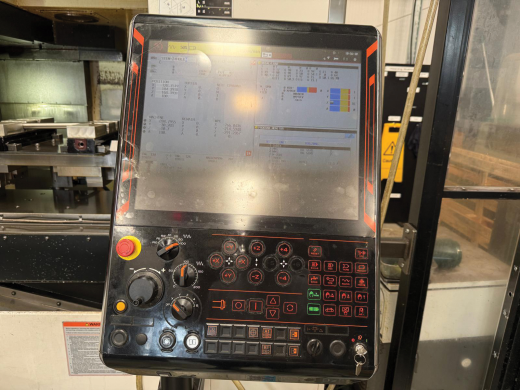

Photo 3

Photo 4

Table size 1,300 x 550mm.
X/Y/Z Travels 1,050/530/510mm.
Max spindle speeds 12,000rpm.
Rapids X/Y/Z 42m/min.
Distance from spindle nose to table min/max 150/660mm.
Max loading on table 1,200kg.
Spindle taper CAT40.
Spindle motor (cont. rating) 11kW.
30 ATC.
Mazatrol Smooth G Control.
RoboJob MA-PAL Robot with Controller & Accessories.
Loading & Unloading Pallets.
Swarf Conveyor & Swarf Bin.
Filtermist Mist Extractor.
Renishaw Tool Setter.
Renishaw Probe.
Renishaw Receiving Unit.
Peripheral Safety Guarding.
Selection of Spindle Tooling.
Set of Manuals.
Machine Dimensions L x W x H 2,880 x 2,820 x 2,800mm.
Weight 6,800kg

Category: Machining centres

Seller's location: Lancs, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 18 Aug 2026
