ANAYAK VH2200 BEDMILL

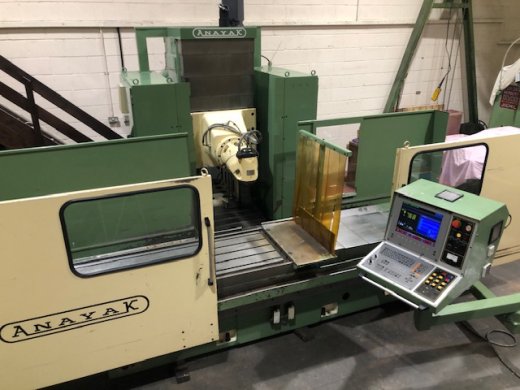

Photo 1

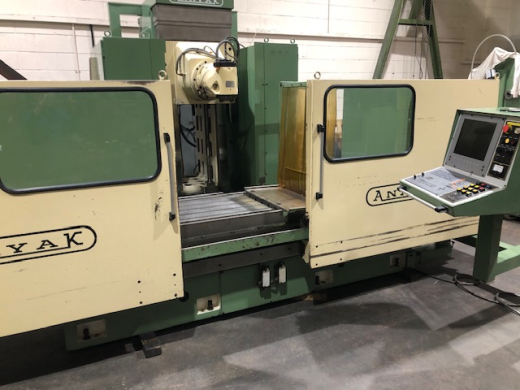

Photo 2

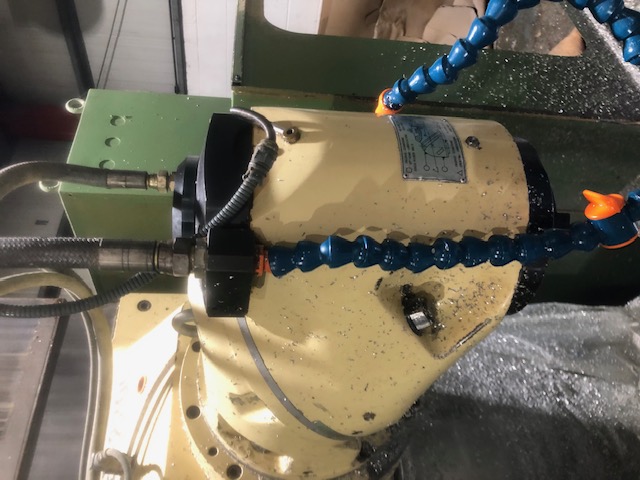

Photo 3

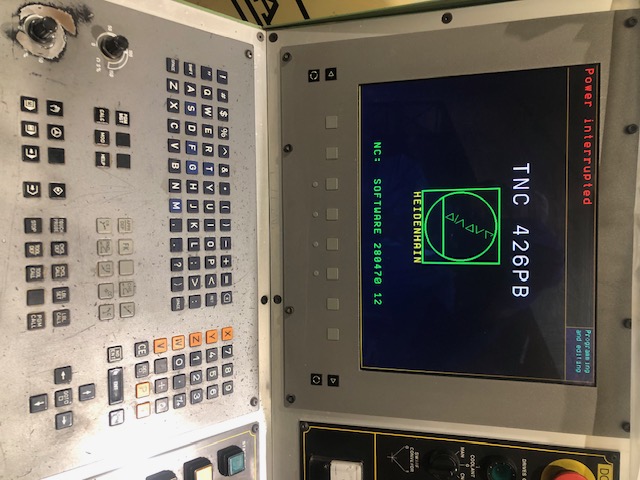

Photo 4

Table Area:2200 x 700mm/86.5 x 27.5inch.
Number of T slots:5 x 18mm width x 125mm spacing

Travels:
X Horizontal = 2000mm/79inch.
Y Cross = 800mm/31.5inch
Z Vertical = 900mm/35.5inch
Speed Range: 60 – 2500 RPM.
Spindle Taper: ISO 50, Hydraulic tool clamping.
Spindle Head Adjustment: Manual vernier positioning.
Feed Rate: 10 – 5000mm/min.
Power: 29Kw
Weight: 13000Kg.
Footprint: Length = 4960mm
Width = 2865mm
Height = 3100mm.

Equipment:
Pendant mounted Heidenhain TNC426 Control
Motors & Drives, Siemens Coolant System
Bedway Telescopic Guards.
Front Sliding Door Guards




Category: Milling - NC/CNC

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 2 Sep 2026
