Hankook VTC-160E CNC Ram Type Vertical Turning and Milling Centre with Fanuc 31i-Model A Colour CNC Control

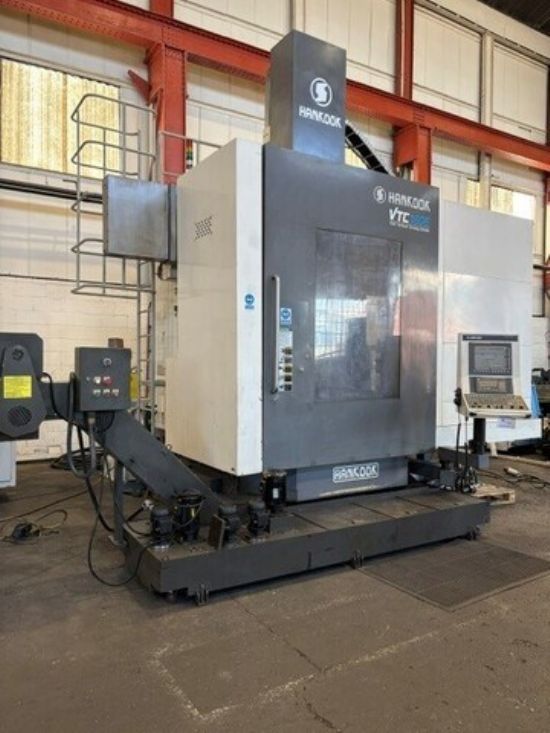

Photo 1

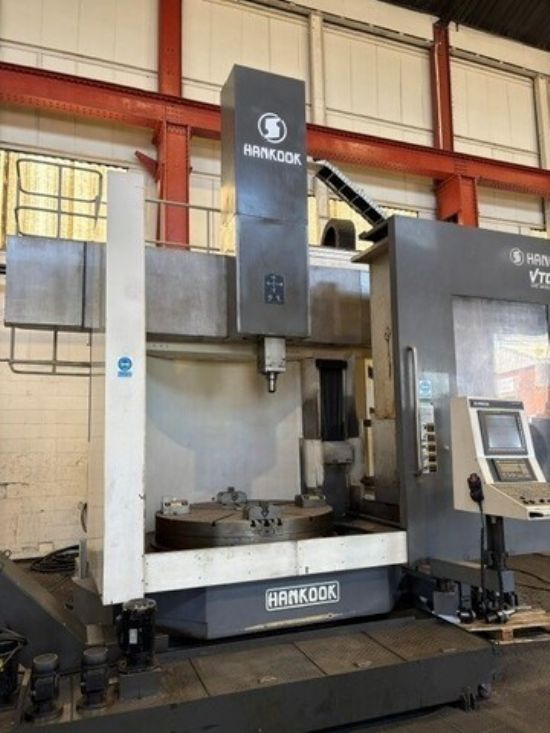

Photo 2

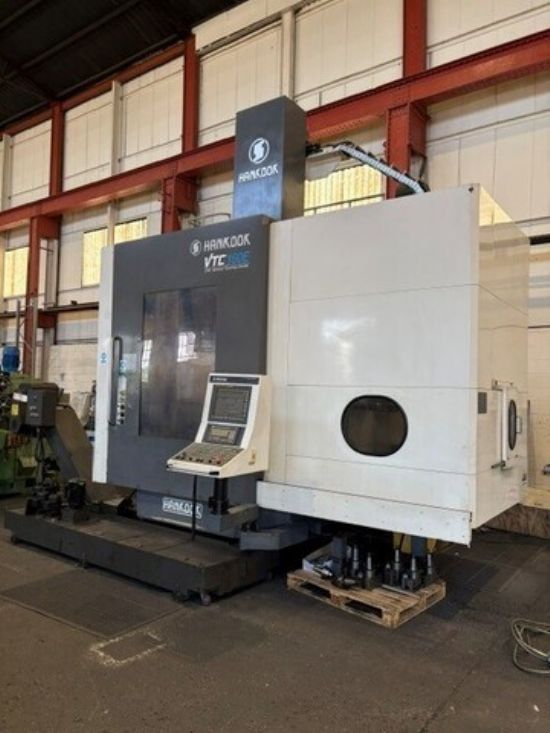

Photo 3

Photo 4

Table dia. 1600mm,
Maximum Swing 2000mm,
Maximum Turning Dia. 2000mm,
Maximum Turning Height 1400mm,
Maximum Table Load 10,000kg,
Horizontal Travel of Rail Head (X-axis) 1900mm,
Vertical Travel of Ram (Z-axis) 900mm,
Vertical Travel of Crossrail 700mm,
Full C Axis 0.001 Resolution,
Milling Spindle 18.5kW,
Milling Spindle Speeds 30-3000rpm,
Table Speeds. 0.7 to 280rpm (2 Speed Gear
Box),
Max Table Torque 23800 Nm,
Ram Size 220mm x 220mm,
Rapid Traverse (X-axis) 7,500mm/min,
Rapid Traverse (Z-axis)

Category: Public Auction

Seller's location: Birmingham, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 8 Sep 2026
