JOHNFORD VTC 880 TWIN PALLET VERTICAL LATHE

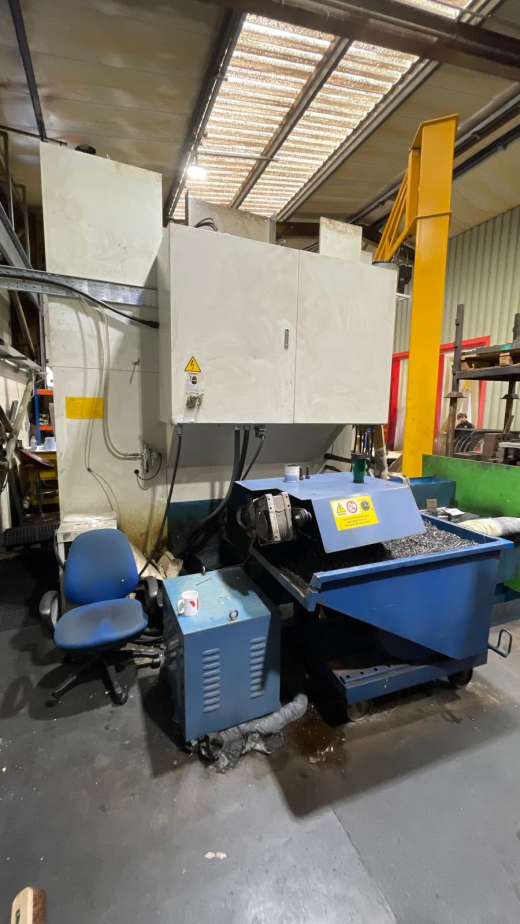

Photo 1

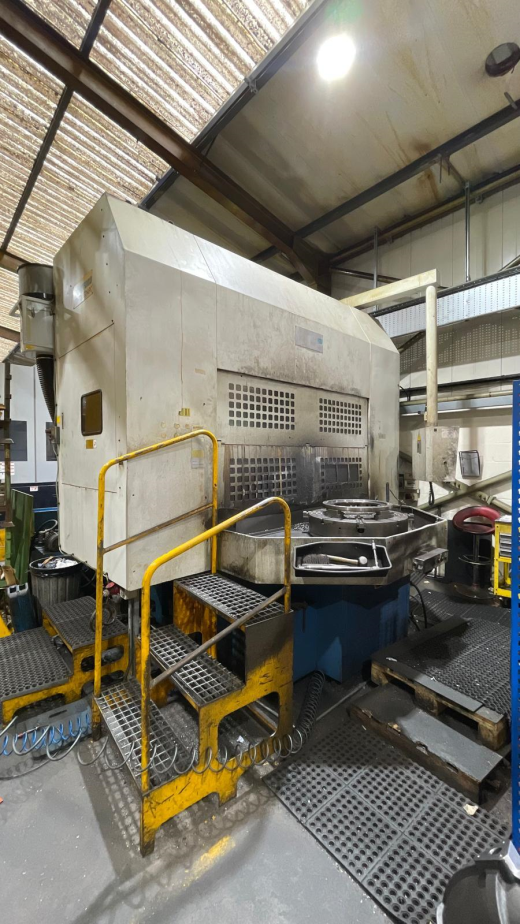

Photo 2

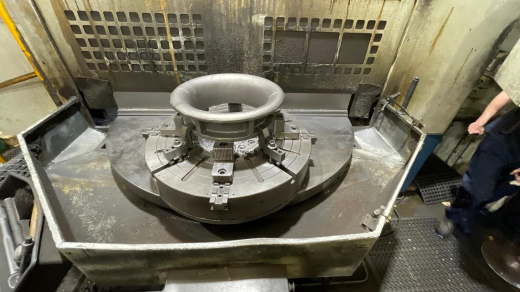

Photo 3

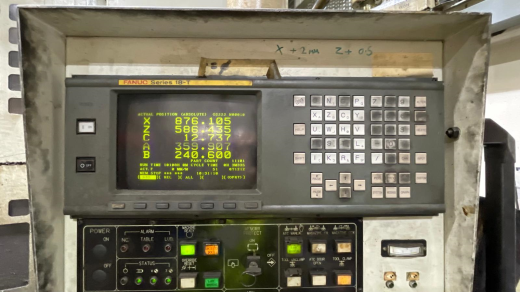

Photo 4

MAKE:JOHNFORD, MADE IN TAIWAN
MODEL: VTC 880 + APC + ATC
YEAR: 2001

CONTROL FANUC 18 T
MAX SWING DIA 1,000 mm
MAX CUTTING DIA 900.0 mm
STANDARD CUTTING DIA 800.0 mm
MAX CUTTING HEIGHT 800.0 mm
TRAVERSES
X AXIS 50.0 mm to 810.0 mm
Z AXIS 880.0 mm
SPINDLE SPEEDS 10 to 800 RPM
SPINDLE BEARING DIA 330.0 mm
SPINDLE NOSE A2 - 11
SPINDLE MOTOR 18.5 / 22 kW
TURRET TYPE AUTOMATIC TOOL CHANGER
NO OF TYPES 2 X 12 ATC
TOOLS SHANK SIZE BT 50 AND CAPTO

PLUS:
FULL C AXIS
MILLING
TAPPING
X, Z, C, A AND B AXES
HIGH PRESSURE COOLANT
PAPER COOLANT FILTRATION
SWARF CONVEYOR
FULLY OPERATIONAL
FULL SET OF MANUALS
GOOD RANGE OF TOOLING


Category: Lathes - CNC Vertical

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Sep 2026
