DEVLIEG 2B-36 JIGMIL

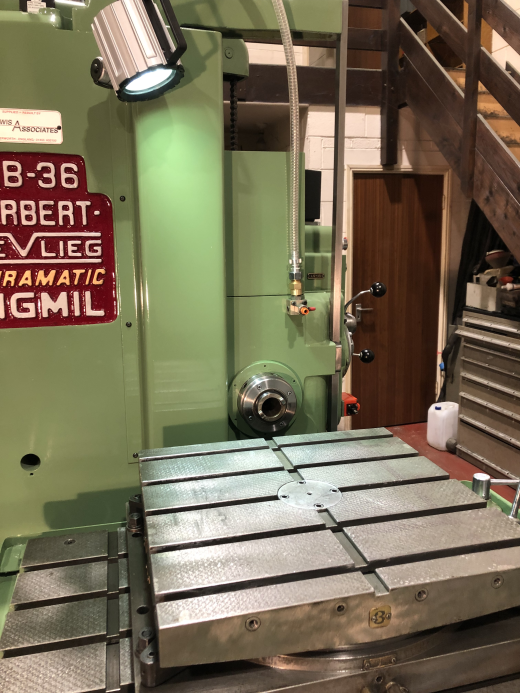

Photo 1

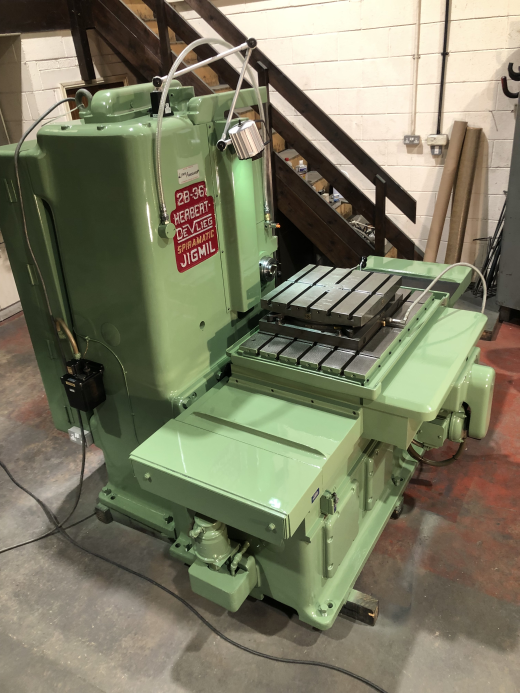

Photo 2

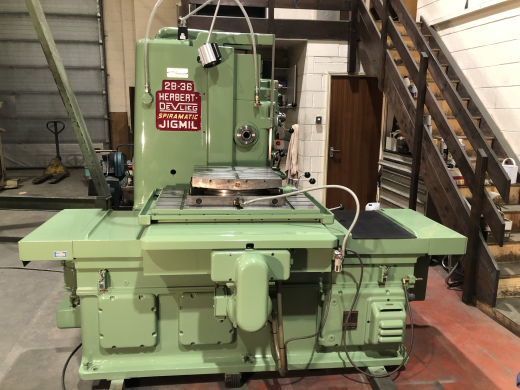

Photo 3

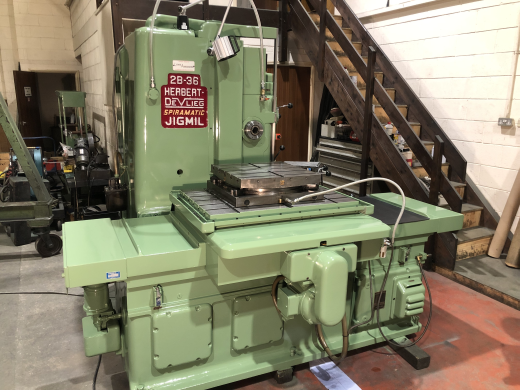

Photo 4

Fully refurbished and repainted

Table Area: 36”/914mm x 24”/610
Horizontal Travel: 36”/914mm.
Vertical Travel: 24”/610mm.
Spindle Bar Travel: 12”/305mm.
Platten Table Travel: 12”/305mm.
Spindle Bar Diameter: 2.5inch/63mm.
Spindle Bar Taper: 40 Int.
Spindle Speeds - 16: 42 – 2000 RPM.
Spindle Motor: 5 HP.
Spindle Feeds - 5: .0016”/.0406mm - .018”/.457mm per min.
Milling Feed Rates – 16: .4”/10.16mm – 32”/812mm per min.

Equipped with:-
20” x 20” Air Index Table
Auto lubrication system
SONY high accuracy DRO to 3 Axis.
Coolant System
Work Light.
Spindle Safety switch

FOOT PRINT
Length = 9’ 6”/2895.
Width = 9’/2743.
Height = 6’ 9”/2057.

WEIGHT
5.5 Tonne approx..


Category: Boring

Seller's location: UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Sep 2026
