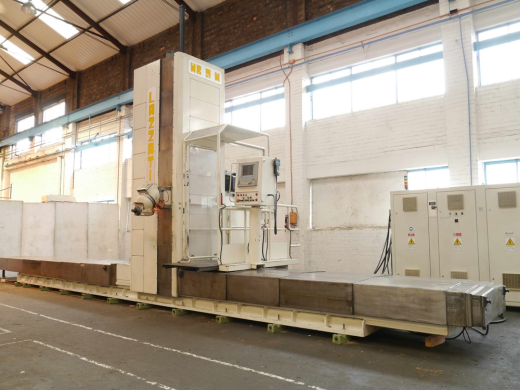

5 Axis CNC Travelling Column Miller with Selca S3045 Control (Heidenhain Compatible)

Photo 1

Photo 2

Photo 3

Photo 4

Manufacturer: LAZZATI
Model: HB2M
Serial No.: RO36900
Year of Manufacture: 2000
Control: Selca S3045 (Heidenhain Compatible)
Longitudinal Travel: Column X Axis 8000mm
Ram Travel: Z Axis 1200mm
Vertical Travel: Head Y Axis 2300mm
Spindle motor power: 37 kW
Spindle Speeds: Constant Torque 5-562 rpm, Constant Power 562-3000 rpm
Spindle Taper: ISO 50 7388
Head Rotation: V Axis 360 Degrees, U Axis 275 Degrees, Indexing via CNC
Ram Size: 335mm x 350mm
Fitted with: Siemen's Drives
Equipped with: 5000mm x 2700mm Floor Plate. Slideway Covers, Operator Platform, Hydraulic Tool Clamping
Length: Floor area required Length 13000mm x width 7000mm x height 5700mm
Machine Nett Weight Actual.: 24.75 Tons. / 25,146 Kgs.
Floor Plate Weight Actual: 15 Tons. / 15,240 Kgs.
[Ref: J30687]



Category: Milling

Seller's location: Leicestershire, UK
