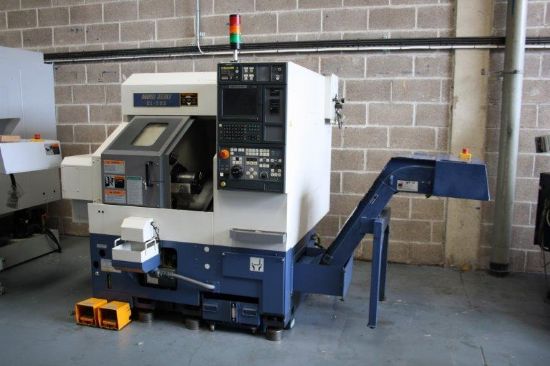

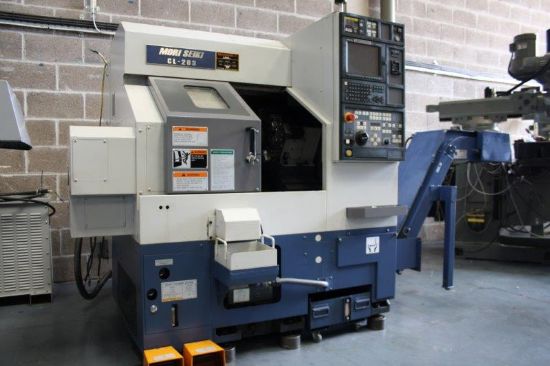

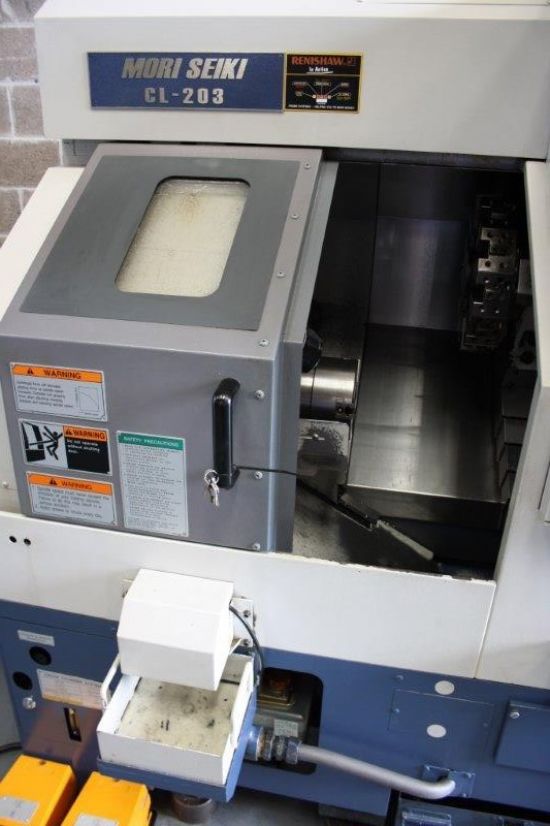

MORI SEIKI CL 203B CNC Lathe

Photo 1

Photo 2

Photo 3

Photo 4

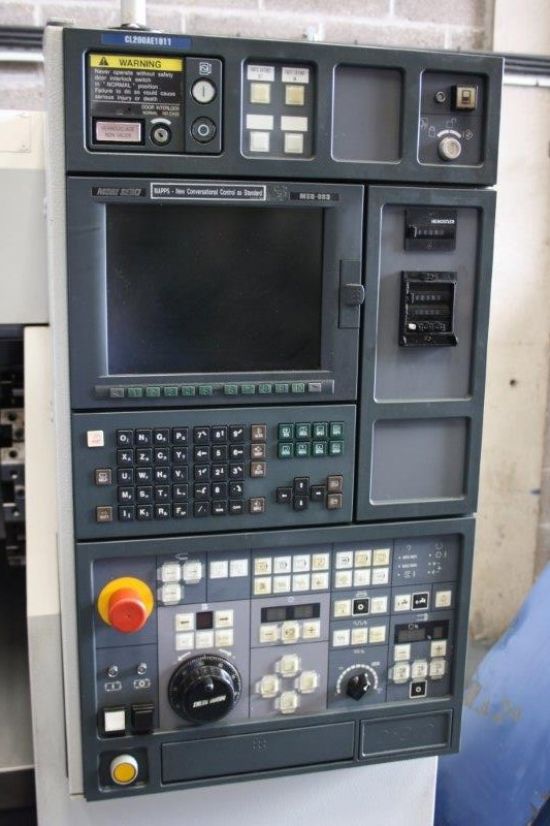

Control: MSG-803

Specification
X-Axis travel, 235mm
Z-Axis travel, 310mm
Maximum turn diameter 410mm
Spindle speed, 3,500rpm
Spindle nose, A2-6
Spindle thru hole, 73mm
Bar capacity, 2.55in 65mm

Spindle Motor, 10/15HP (Cont./30min)
Chuck size 200mm 3-jaw
Turret, 10 Station
Machine weight 2,500kgs

Features:
Chip Conveyor

Bar Feed interface

Collet chuck

Renishaw part and tool probes

Full Manual Set Several Manuals

Category: Lathes - CNC

Seller's location: Bristol, UK
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 12 Feb 2021
