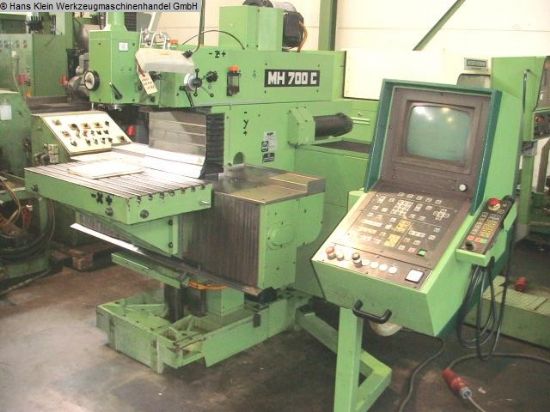

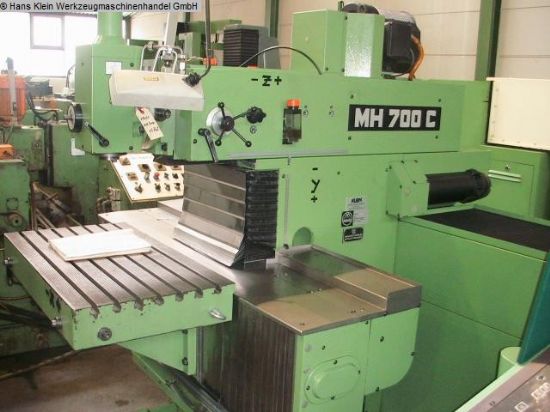

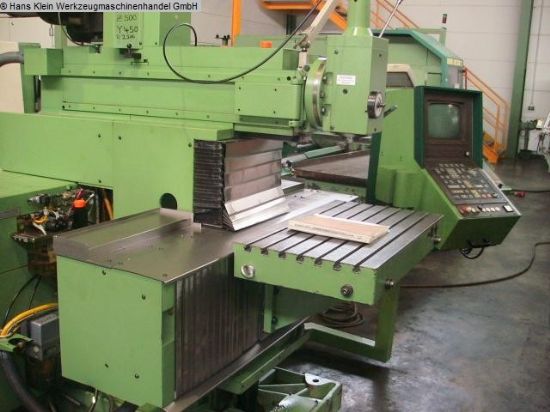

MAHO MH 700 C Universal Milling Machine

Photo 1

Photo 2

Photo 3

Photo 4

1985
Control CNC
x-travel 700 mm
y-travel 500 mm
z-travel 450 mm
table-size 900 x 500 mm
spindle taper ISO 40
spindle turning speed range 20 - 3150 U/min
feeds 1 - 3000 mm/min
rapid traverse 6 m/min
table load capacity max. 500 kg
stroke of quill vertical 100 mm
control PHILIPS CNC 432
total power requirement 40 kVA
weight of the machine ca. 4 t

Other information
Accessories: vertical head with hydr. tool clamping and quil retraction,
solid table, electron. hand control panel, coolant

- very good condition -

Category: Milling - NC/CNC

Seller's location: Germany
To see the seller's contact details please use the contact form below.

The seller confirmed the item was still for sale on: 31 Dec 2021
