ASQUITH Model HFC 180 CNC Floor Borer

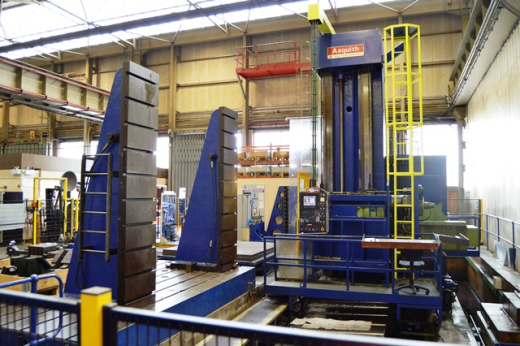

Photo of machine

Photo 1

Photo of machine

Photo 2

Photo of machine

Photo 3

Photo of machine

Photo 4

Photo of machine

Video

with Asquith HTU 20 Ton Rotary Table.
Year 1982
Spindle 180mm dia. 50 ISO taper
Spindle speeds 9.6-712rpm
Facing Head 1,200mm dia.
Maximum dia. Faced 1,760mm
Milling sleeve flange dia. 280mm
Double swivel 50 ISO Universal Milling Head
Column Travel X axis 8,000mm
Spindle Vertical Travel Y axis 3,500mm
Spindle travel X axis 1,000mm
Facing Slide W axis 280mm

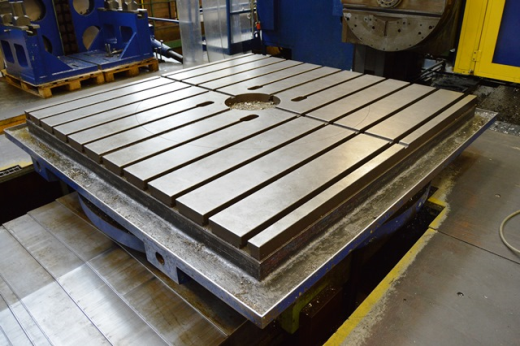

Rotary Table V Aaxis
2,440 x 2,440mm
Table traverse 1830mm U axis
Table capacity 20,000kg
New Heidenhain 415 CNC Control fitted in 2014
All 5 axis controlled through CNC.

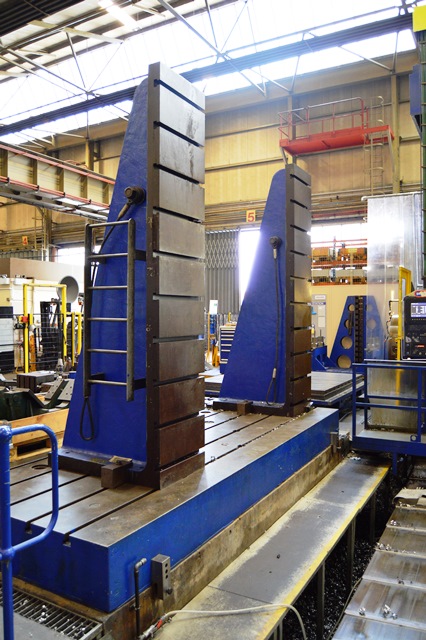

Complete with Floor plates and Angle plates.
Full documentation
Accuracy report available
Annually service reports available

Category: Boring - NC/CNC

Location: South Yorkshire, UK
