CORREA PANTERA CNC Milling machine - Bridge type

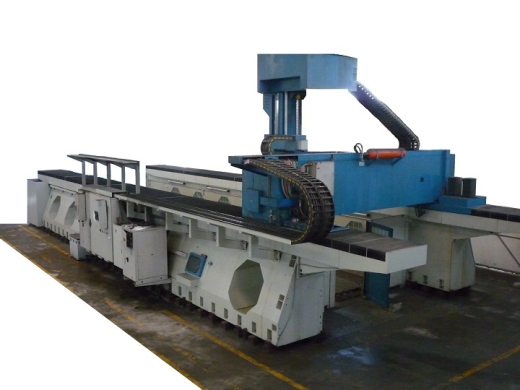

Photo 1

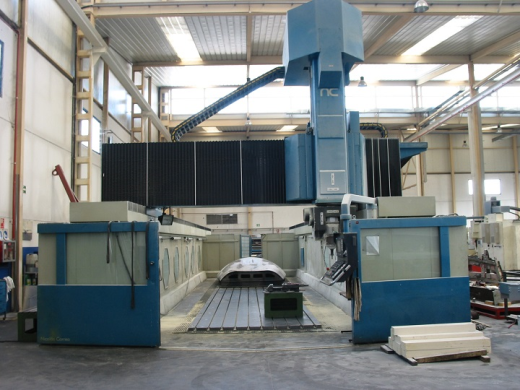

Photo 2

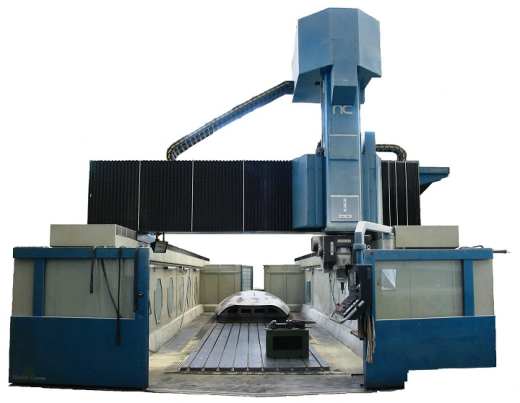

Photo 3

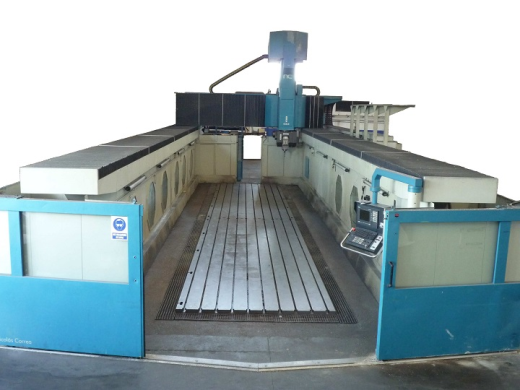

Photo 4

Control: SIEMENS 840 D
Year: 2003

• Table dimensions: 14.000 x 2.500 mm
• Number of T slots: 10
• T slots dimensions: 22 mm

• X axis traverse: 14.000 mm
• Y axis traverse: 3.100 mm
• Distance between columns: 4.417 mm
• Z axis traverse: 1.200 mm (220 - 1.420 mm)

• Head type: 5 Axis “C5C” Electrospindle 18.000 rpm
• Tool clamping system: Hydraulic
• Taper nose: HSK 63
• Speed range: 18.000 rpm
• Spindle power: 25 kW

• Feedrate: 30.000 mm/min
• Rapid feedrate (X/Y,Z): 30.000 mm/min

• Maximum weight on table: 15.000 Kg/m²
• Machine weight: 135.000 Kg
• Machine dimensions: 15.000 x 8.418 x 6.033 mm

• Guarding: Yes
• Internal & external coolant
• Automatic tool changer: 24 tools
• Electronic handwheel: Yes
